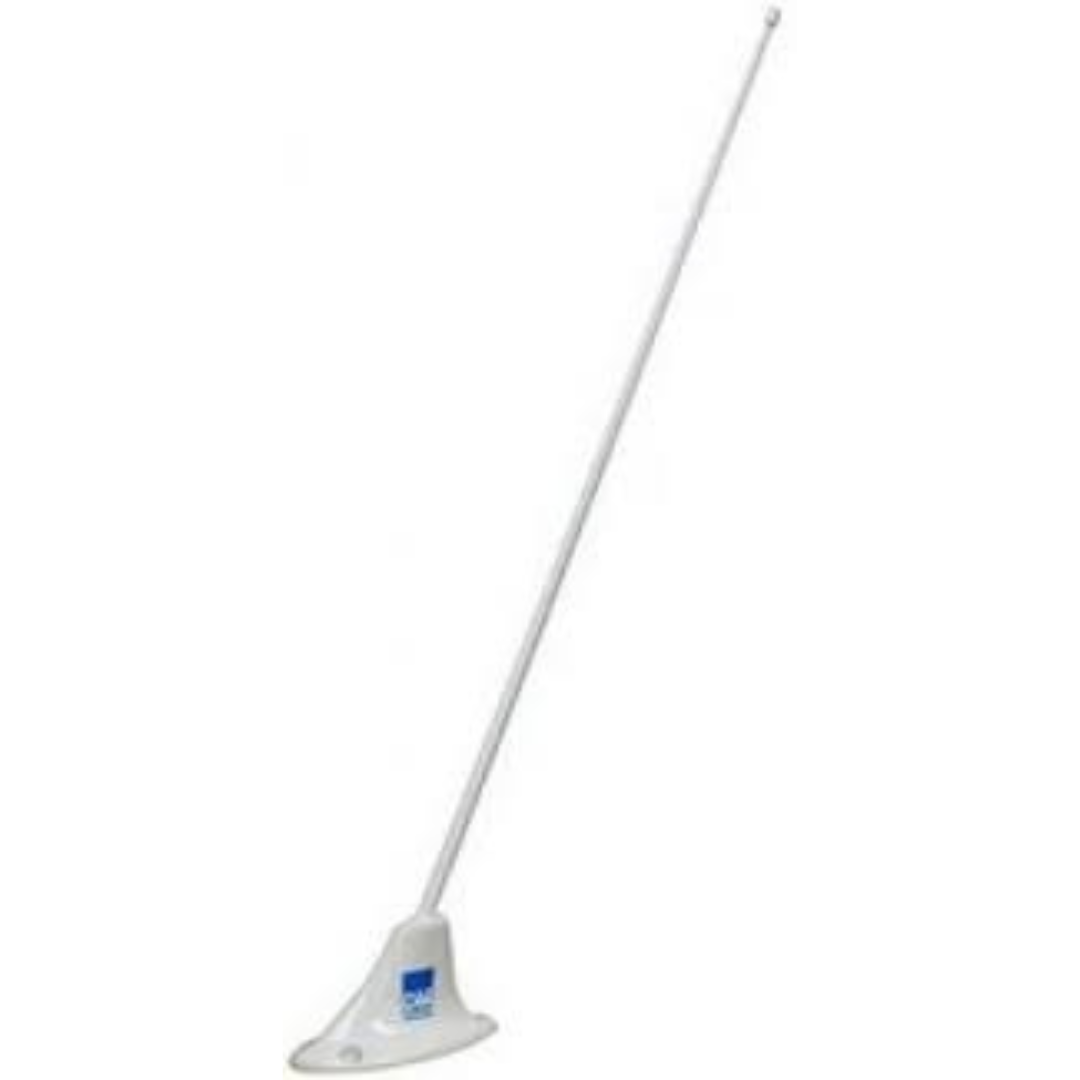

DM C63-1/A ANTENNA
Part #: DMC63-1/A
DMC631A
Call for price
CompararOverview
| Frequency Range 118-137 MHz The DM C63-Series antennas are VHF communication antennas designed for high mechanical strength with machine tapered aluminum alloy radiating elements. These vertically polarized antennas cover the frequency range of 118-137 MHz for both transmitting and receiving applications. The DM C63-1/A is designed for mounting on top of the fuselage. All DM C63-Series antennas are supplied with a gasket and a doubler plate. Electrical Frequency Range 118 – 137 MHz VSWR 2.0:1 Polarization Vertical Radiation Pattern Omnidirectional Gain Equivalent to a quarter wave stub Impedance 50 Ohms Power 50 W TSO C37d and C38d Mechanical Weight 8 oz Height 20.50 in. Max Finish White Connectors BNC Female Environmental Per D0160C F2-ABCXXXXXXXXXXXXXXXX |
