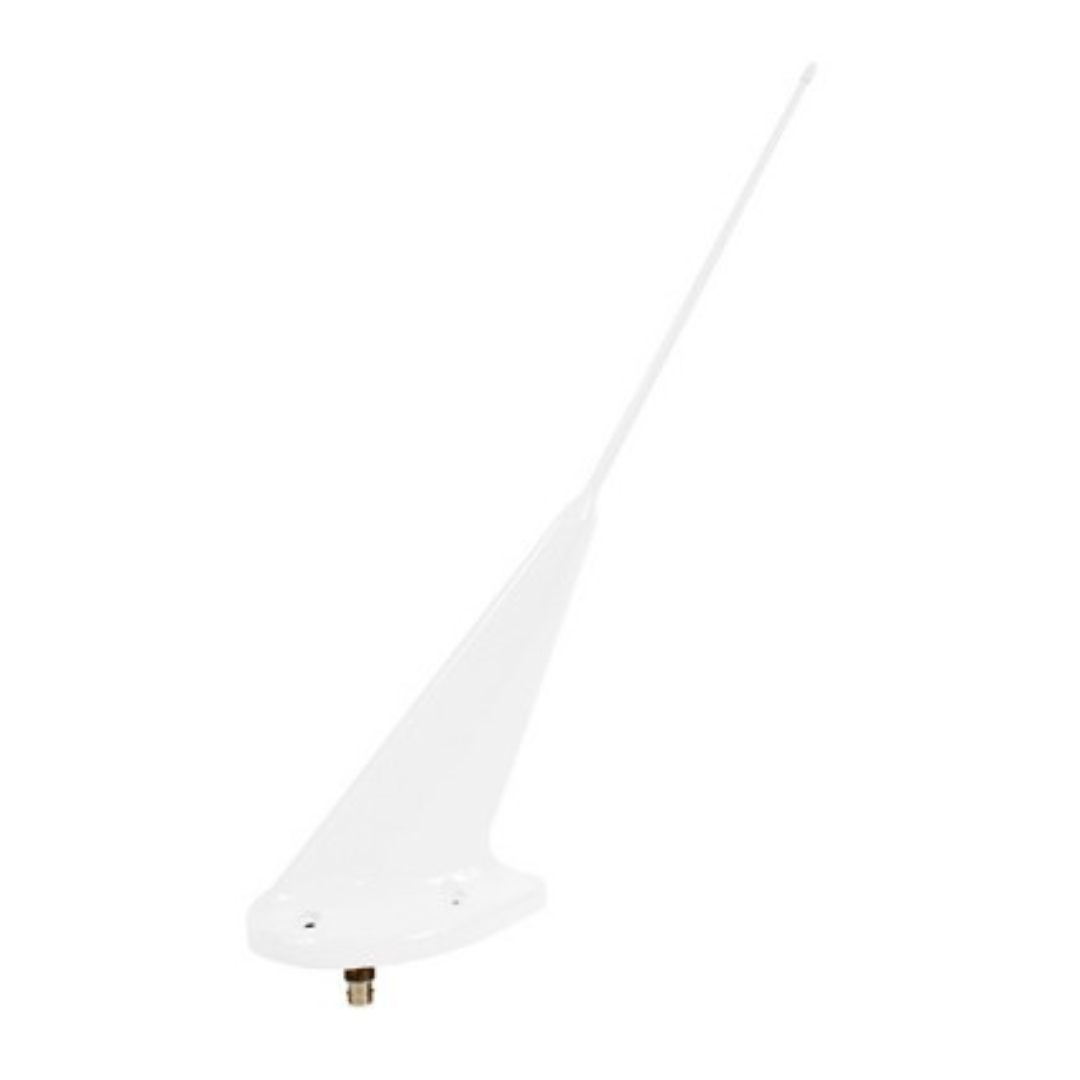

DM C70-6 VHF COMM BROADBAND ANTENNA
Part #: C70-6C706
Call for price
CompararOverview
|
The C70 Series VHF Communication Antennas are designed to be installed on the top or bottom on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. Its lightweight profile is unobtrusive, resists icing, and has low drag. This variant of the C70 series VHF communication antenna (DM C70-6) has a VSWR of 2.5:1, rated for speeds of 400 mph, also has a different mounting hole pattern and connector location than the C70-1/A. |
| Peso | 0.34 lbs |
|---|---|
| Dimensões | 19 × 6.25 × 3.25 in |
Specifications
- Connector: BNC female
- Finish: white polyurethane
- Frequency Range: 118 – 137 MHz
- VSWR: C70, -1/A, -3, -9: 2.0:1 / C70-4, -6: 2.5:1
- Impedance: 50Ω
- Polarization: vertical
- Radiation Patterns: Omnidirectional in Azimuth
- Power Handling: 50 watt
- TSO C37d, C38d – DO160c ENV CAT F2-ABCXWFDXSXXXXXXXXXX
- Speed Rating: C70-1/A, -4, -6, -9: 400 MPH / C70-3: 250 MPH
