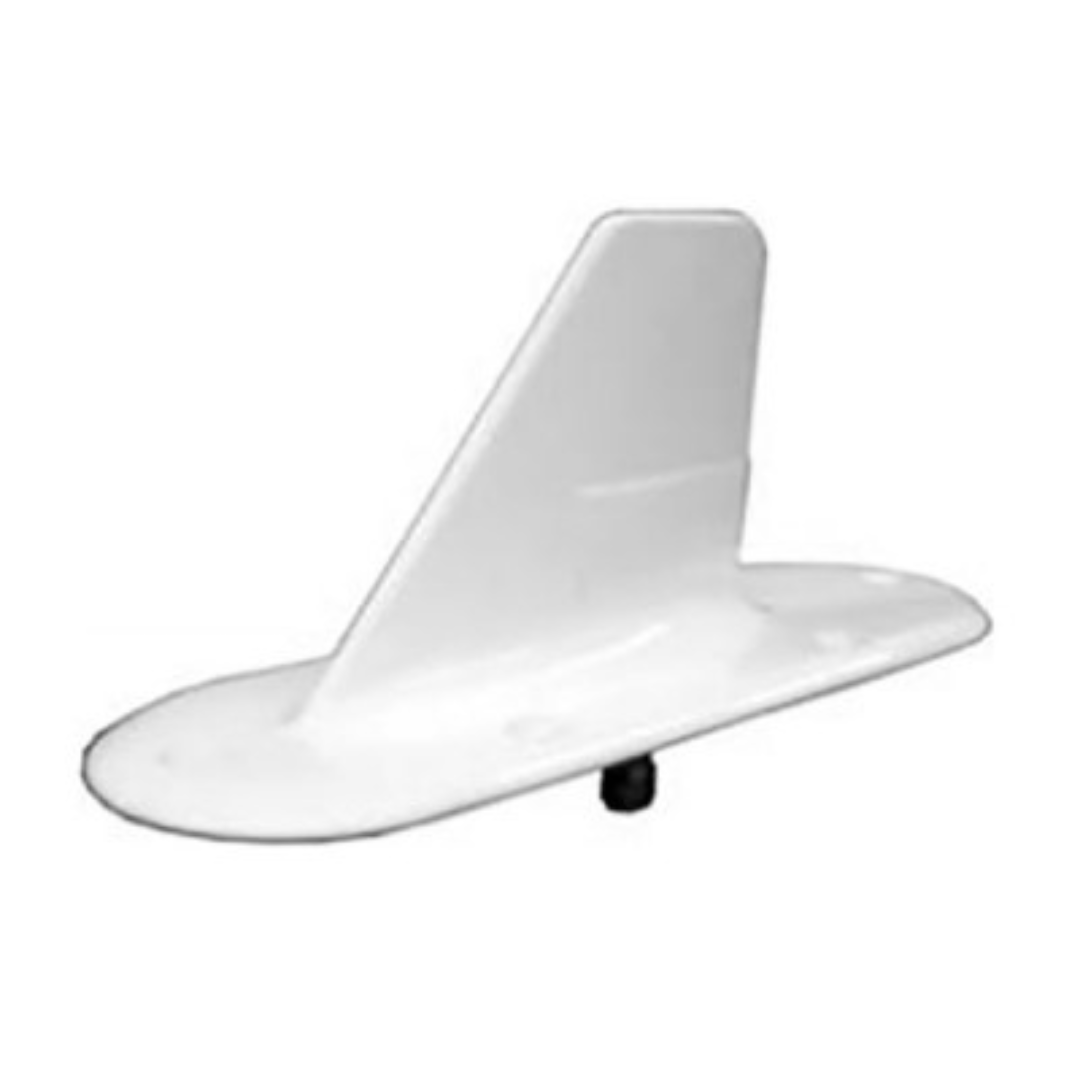

DMNI 70-2 DME/ATC TRANSPONDER ANTENNA

Part #: DMNI70-2

DMNI702

Comparar

Overview

The DMNI70 L-Band antennas offer more than sufficient bandwidth (950 to 1,220 MHz) for use with civil aviation ATC transponders and distance measuring equipment (DME). The antenna provides omnidirectional, vertically polarized coverage when installed on the top, or bottom, of an aircraft. Its streamlined shape assures minimum aerodynamic drag. Structurally, the antenna consists of a single metal element.
Peso 0.12 lbs
Dimensões 9 × 7 × 2 in

Specifications

  • Frequency Range: 960 to 1,220 MHz
  • VSWR: < 1.7:1 950 to 1,220 / < 1.5:1 1,000 to 1,100
  • Gain Equivalent: to a quarter wave stub
  • Polarization: Vertical
  • Power: 2 kW peak
  • Radiation Patterns: Omnidirectional
  • DC Resistance: Open circuited
  • Impedance: 50 OHMS
  • Mechanical: —
  • Weight: 0.25 lbs.
  • Connector: C (female) DMN170-1, DMN170-3 / BNC (female) DMN170-2
  • Finish: White
  • Environmental: TSO C66a ENV. CAT. JAJXXXX
  • TSO C74b: ENV. CAT. JAJXXXX / CAT. II
  • Drag, Sea Level @ 250 mph: 0.5 lbs.
