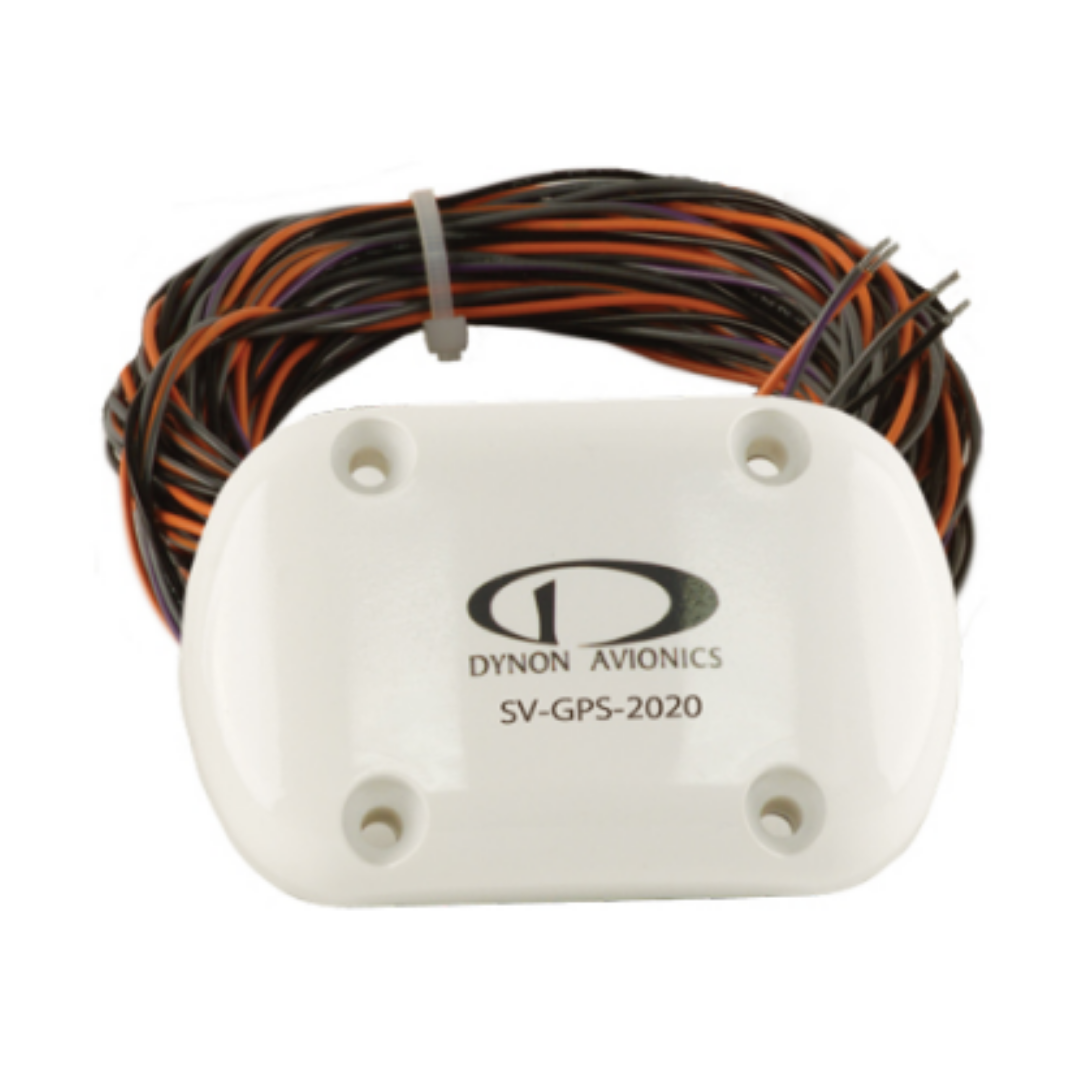

DYNON SKYVIEW SV-GPS-2020 GPS / ADS-B RECEIVER
Part #: 102749-000
R$8,988.82
CompararOverview
| The SV-GPS-2020 GPS Receiver/Antenna from Dynon Avionics allows existing and SkyView and Advanced AF-5000 series customers to add a 2020-compliant GPS position for ADS-B Out. As a drop-in replacement for the existing SVGPS-250 receiver, existing customers do not need to run any additional wires, coax, or install any new boxes in their aircraft.
When combined with Dynon’s SV-XPNDR-261 Mode-S transponder, SkyView and Advanced Flight Systems customers meet all the transponder and ADS-B Out requirements. Pilots can also add the SVADSB-470 Traffic and Weather Receiver for the best possible situational awareness in their aircraft. |
| Peso | 0.36 lbs |
|---|---|
| Brands |
Specifications
- Size: 2.19” W x 0.75” H x 3.44” D
- Weight: 7 oz
- Maximum Velocity: 400 knots
- Update Rate: 4 Hz
- Temperature: Storage -40 °C to +70 °C
- Operating -30 °C to +60 °C
- Source Integrity Level (SIL): 3
- Interface: 115,200 baud RS-232 NMEA
- Output w/ integrity dataTransponder Compatibility: SV-XPNDR-261
SV-GPS-2020 + SV-XPNDR-261 System
- System Design Assurance (SDA): 2
- Compliance: Meets FAR section 91.225, 91.227 and performance requirements of TSO-c166b
