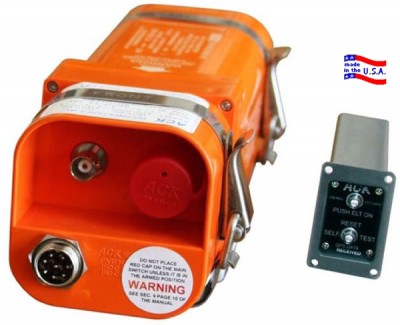

E-04C.2 COMMERCIAL ELT KIT W/O ANTENNA

Specifications

Approvals

• FAA / Transport Canada
• TSO -C126b TSO-C91a TSO-C142a
• EASA
• ETSO 2C126 ETSO 2C91a TSO-C142a
• Industry Canada
• 1863A-E04AF
• Brazil ANAC/ANTEL
• TSO-C126 TSO-C142a

Type: TSO-C126b TSOC-91a AF

Frequency: 121.5 MHz & 406.037 MH

Modulation:

• 406 MHz +/-2 kHz Bi-Phase L (16KOG1D)
• 121.5 MHz +- 6 kHz AM (3K20A3N)
• Swept Downward 1400 – 400 Hz
• Repetition Rate 3 Hz
• Modulation Factor ≥ 90%
• Duty Cycle ≥ 45%

Power At Terminal 50 Ω Load:

• 121.5 MHz 20.7 dBm 50 Hours@ -20C
• 406.037 MHz 37.3 dBm 24.5 Hours @ -20C

Peak EIRP with E-04.8 Whip Antenna AND E-04.10.4 Coax Cable:

• 121.5 MHz +22 dBm 160 mW
• 406.037 MHz +39.79 dBm 13.7 W

Peak EIRP With S65-1231 BLADE Antenna and E-04.10.4 Coax Cable:

• 121.5 MHz +23 dBm 200 mW
• 406.037 MHz +39.79 dBm 13.7 W

Operating Temperature:

• -20C TO +55C
• Storage Temperature: -55C TO +85C

Crash Activation: 4.5 FpS +- .5 FpSWeight:

• ELT and battery pack 1.6 lbs .73kg
• ELT tray and straps .2 lbs .09kg
• Remote Control (RCPI) 12.5oz 31g
• Audio Alert Indicator 1.5 oz 43g
• Whip Antenna Part Number E-04.8
• Length 20.625” 524 mm Swept 20º
• Weight 2.1 oz 60g
• Impedance 50 OHM Nominal
• VSWR @ 121.5 MHz ≤ 3.0:1
• VSWR @ 406 MHz ≤ 1.4:1
• Maximum Recommended Airspeed 260 Knots@ Sea Level
• Blade Antenna Part Number S65-1231-1
• Height 7.5” 190 mm SWEPT 20º
• Weight 23 oz 652g
• Impedance 50 OHM Nominal
• VSWR @ 121.5 MHz ≤ 2.0:1
• VSWR @ 406 MHz ≤ 1.5:1
• Maximum Recommended Airspeed Mach 1 @ Sea Level

In The Box

• 1 – E-04C 121.5/406 MHz ELT
• 1 – E-04.5.1 Remote with vertical placard
• 1 – E-04.5.1.0H Remote horizontal placard
• 1 – E-04.10.4 Coax cable 60”
• 1 – E-04.10.1.11 Warning horn
• 1 – E-04.4 Mounting Tray
• 1 – E-04.4.1 Retaining strap front
• 1 – E-04.4.2 Retaining strap battery case
• 1 – E-04.10.1.13K 2 Pin plug kit
• 1 – E-04.10.1.4K 8 Pin circular plug kit
• 1 – E-04.10.1.10K 15 Pin plug kit
• 1 – E-04.11.1 Switch cover
• 1 – E-04CM Installation/Operation/Manual
