Avionics & Instruments, Compasses, Falcon & Swift, Instruments
FALCON VERTICAL CARD COMPASSES NON-TSO
Part #: MCVC-2L-A, MCVC-2L-A-M, MCVC-2SL-A, MCVC-2SL-A-M
MCVC2LA, MCVC2LAM, MCVC2SLA, MCVC2SLAM
Comparar
Overview
| Note: These compasses are not FAA Approved and are intended for experimental aircraft use only.

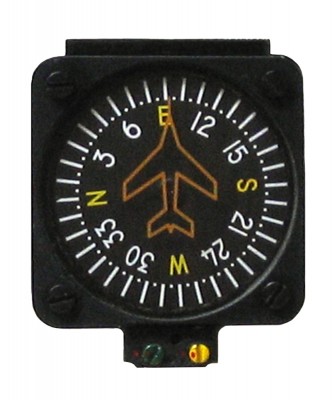

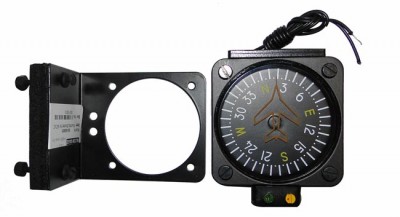

The Falcon Vertical Card compass is a non-liquid type compass. It is designed using a new concept which eliminates leaking. With a 2″ vertical dial which is compared to a miniature airplane to present the magnetic heading of the aircraft at all times, heading information is more natural and easy to read presentation and see the complete 360º dial. 90º±5 vertical mount. Can be purchased with or without mounting bracket, with or without 12VDC Lighting, and in Northern or Southern hemisphere orientation. |
| Peso | Não aplicável |
|---|---|
| Brands | |
| Select Hemisphere: | Northern Hemisphere, Southern Hemisphere |
| Select Lighting: | Lighted 12VDC |
| Select Version: | Compass Only, Compass + Mounting Bracket |
Specifications
| MODEL | APPLICATION | DESCRIPTION |
| MCVC-2L-A | Northern | Lighted 12V DC, 90º±5 Vertical Mount |
| MCVC-2L-A-M | Northern | Lighted 12V DC, 90º±5 Vertical Mount With Mounting Bracket |
| MCVC-25-A | Southern | Without Light, 90º±5 Vertical Mount |
| MCVC-25-A-M | Southern | Without Light, 90º±5 Vertical Mount with Mounting Bracket |
| MCVC-2SL-A | Southern | Lighted 12V DC, 90º±5 Vertical Mount |
| MCVC-2SL-A-M | Southern | Lighted 12V DC, 90º±5 Vertical Mount with Mounting Bracket |
| MCVC-2A | Northern | Without Light, 90º±5 Vertical Mount |
| MCVC-2A-M | Northern | Without Light, 90º±5 Vertical Mount with Mounting Bracket |
