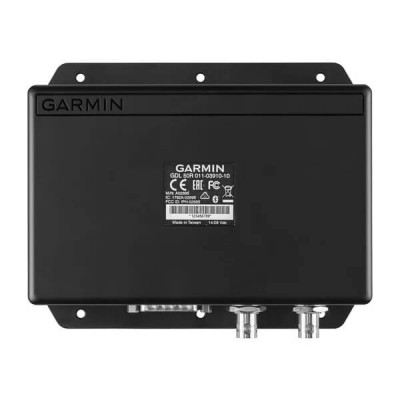

GARMIN GDL® 50R REMOTE MOUNT ADS-B / GPS RECEIVER

Part #: 010-01561-10, 010-01561-15
Garmin

0100156110

0100156115

Comparar

Overview

Note: For use with the Garmin Pilot App, other Garmin Portable systems, and ForeFlight only.
Note 2: GDL 50 ADS-B WILL work for traffic internationally on the second frequency, 1090ES. These receivers (all ADS-B receivers) will NOT receive FIS-B weather products outside the USA as that is a USA only system. They will not receive traffic on frequency 978 outside the USA but WILL work internationally on frequency 1090ES.

  • ADS-B “dual-link” traffic with TargetTrend™ and TerminalTraffic™ technology3
  • Wireless connectivity for display on select mobile device apps and Garmin portables
  • Remote-box ADS-B “In” solution for G3X Touch flight displays
  • Provides GPS position data, backup attitudeand more For pilots flying with our G3X Touch glass display systems, the compact GDL 50R remote-mount receiver brings an array of safety-enhancing features to the cockpit. It connects your flight displays with subscription-free graphical weather content and advanced dual-band traffic services being continuously uplinked through the U.S. ADS-B network. Plus, you can also use our Connext wireless connectivity to stream this information onto multiple Garmin aviation portables (including aera® 660, aera 796 or aera 795 series) as well as iPad® tablets and mobile devices with the Garmin Pilot™ app.Works with a Variety of Devices
    Providing multiple display outputs and viewing options, GDL 50R works not only with your G3X Touch avionics, but it can also communicate simultaneously with the Garmin Pilot app running on your compatible iPad tablet or mobile devices². Likewise, if you fly with an aera 660, 796 or 795 series aviation portable, the receiver’s data links can also be accessed (via wired or wireless connection) with these products as well. In fact, GDL 50R is able to support up to 2 Connext wireless connections for your devices while simultaneously providing wired connections for 2 other devices.Track Aviation Weather
    Featuring ADS-B “In” datalink technology, the GDL 50R receiver allows reception of subscription-free Flight Information Service-Broadcast (FIS-B) weather information in the U.S. With this, your compatible devices² can display animated graphical weather plus METARs, TAFs, winds and temperatures aloft, PIREPs, NOTAMs and other features linked from ADS-B. And to help you maintain the most current weather picture, your GDL 50R receiver can queue the ADS-B weather data while your display device is sleeping or turned off, so it automatically updates when you turn the screen back on.For airport operations, TerminalTraffic technology (a part of the comprehensive Garmin suite of Terminal Safety Solutions) enables ADS-B equipped surface targets to be displayed on your device’s SafeTaxi® diagram, so you can see what’s happening with traffic on busy runways and taxiways. ADS-B equipped aircraft in flight are easily distinguished from ground vehicles and taxiing aircraft, which are displayed using distinct colors and symbols. Thus, TerminalTraffic provides a clear, real-time overview of on-surface activity in the airport environment.Spot Potential Traffic Threats
    To aid in situational awareness, GDL 50R can also receive ADS-B position reports directly from other aircraft in your vicinity. In the U.S., 2 frequencies (978 UAT and 1090 ES) are approved by the FAA for ADS-B broadcasts, so the GDL 50R offers access to both frequencies. This allows you to see the most comprehensive view of all ADS-B “Out” equipped targets in your vicinity. Your compatible display³ will alert you by announcing traffic targets both audibly and visually. Spoken audio alerts announce “Traffic, Traffic” to get you looking right away.View Enhanced Traffic Features
    To further extend your display’s traffic monitoring capability (on compatible displays), the GDL 50R receiver also allows access to our TargetTrend relative motion tracking technology. This feature gives you a faster, more intuitive way to judge the direction and closure rate of intruding targets relative to your aircraft’s position. So, rather than a fixed “snapshot” of the traffic situation, TargetTrend provides a more dynamic “velocity-based” display that shows which aircraft trajectories are most likely to converge with your own. For example, if traffic is ahead of you and traveling along the same track but at a slower rate, the motion vector would point opposite of its indicated direction of flight to show you are overtaking the traffic. The result — you’re able to make faster, better target avoidance decisions.For airport operations, TerminalTraffic technology (a part of the comprehensive Garmin suite of Terminal Safety Solutions) enables ADS-B equipped surface targets to be displayed on your device’s SafeTaxi® diagram, so you can see what’s happening with traffic on busy runways and taxiways. ADS-B equipped aircraft in flight are easily distinguished from ground vehicles and taxiing aircraft, which are displayed using distinct colors and symbols. Thus, TerminalTraffic provides a clear, real-time overview of on-surface activity in the airport environment.Built-in GPS and Attitude Sensors for SVX™ Display
    In addition to its ADS-B weather and traffic capabilities, your GDL 50R feature set includes a built-in WAAS GPS receiver. This enables GDL 50R to deliver highly accurate aircraft position, speed and altitude information to your compatible mobile device app. Also, built-in attitude sensors enable select Garmin aviation portables and apps with our SVX synthetic vision technology to serve as a backup attitude reference4 during your flights. With virtual terrain, obstacles, runways, horizon cues, HSI, GPS speed, altitude and more, this brings a whole new perspective to your portable navigation.Link up with the Benefits of ADS-B
    For pilots who want subscription-free U.S. datalink weather and traffic, the remote GDL 50R receiver is one of the simplest and smartest ways to interface ADS-B weather and traffic with your G3X Touch avionics and more. And by going with Garmin, your receiver will be backed by a comprehensive 1-year warranty — and by the industry’s No. 1-ranked product support team.
Part: 010-01561-10, 010-01561-15 Categorias: , , , , Tag:
Peso 0.35 lbs
Dimensões 5.0 × 6.1 × 1.6 in
Select Version:

Experimental, Certificated

Brands

Specifications

    Physical

  • Unit dimensions, WxHxD: 6.1″ x 1.6″ x 5.0″ (15.49 x 4.06 x 12.7 cm)
  • Weight: 0.78 lbs (0.35 kg)
    Performance

  • Operating temperature: -20°C to +60°C (-4°F to 140°F)
  • Operating altitude: To 55,000 ft
  • Nominal operating velocity range: 0 – 800 kts (411 m/s)
  • Power input: 10 to 32 VDC, 3.5 W max.

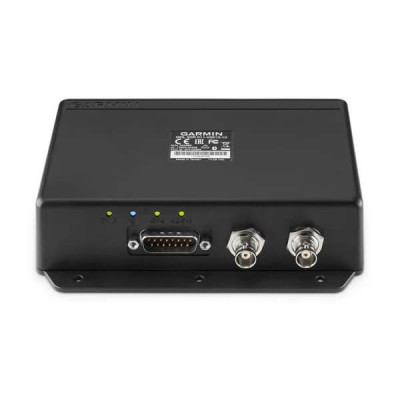

    Connections

  • 15-pin standard D-sub power and data connector
  • ADS-B BNC antenna port
  • GPS BNC antenna port
  • Wireless Connext™ (Bluetooth®)

ForeFlight

The GDL 50 series datalink receivers are now compatible with the ForeFlight app, allowing customers access to a full featured suite of weather products, Automatic Dependent Surveillance-Broadcast (ADS-B) traffic and more by using a single receiver. SiriusXM Aviation weather and ADS-B traffic and weather can now be displayed using software version 10.2 or later, available from ForeFlight. ForeFlight support for GDL 52/51 does not include SiriusXM audio entertainment control at this time.

Pilots using ForeFlight Mobile with the Garmin GDL51 or GDL52 receiver can access two tiers of SiriusXM Aviation weather: 1) Pilot for ForeFlight or 2) Pilot Express.

1: The attitude information provided by GDL 52 series portables is not intended to be a source of attitude information for flight in instrument meteorological conditions (IMC) and should not be used under these conditions.

In The Box

  • GDL 50R
  • Trial subscription of Garmin Pilot™

Compatible Devices

Display ADS-B Traffic & Weather Connection TargetTrend™ Capable GPS & Attitude Information
Garmin Pilot App Yes Bluetooth® Yes Yes
G3X Touch™Flight Displays Yes Bluetooth® or Cable Yes N/A
aera 796/795 Yes Bluetooth® or Cable Yes Attitude Only
aera 660 Yes Bluetooth® or Cable Yes Attitude Only
FltPlan Go Yes Bluetooth® No Yes
ForeFlight Mobile Yes Bluetooth® No Yes
