J.P. INSTRUMENTS EDM-730 ENGINE MONITORING SYSTEM
Part #: EDM-730 4C, EDM-730-9 231, EDM-730-4C, EDM-730-4C-201, EDM-730-4C 201, EDM-730-4C-231, EDM-730-4C 231, EDM-730 6C, EDM-730-6C, EDM-730-6C-201, EDM-730-6C 201, EDM-730-6C-231, EDM-730-6C 231, EDM-730-7C, EDM-730-7C 231, EDM-730-8C, EDM-730-8C 201, EDM-730-8C 231, EDM-730-9C
Availability:
Fora de estoque
Comparar
Overview

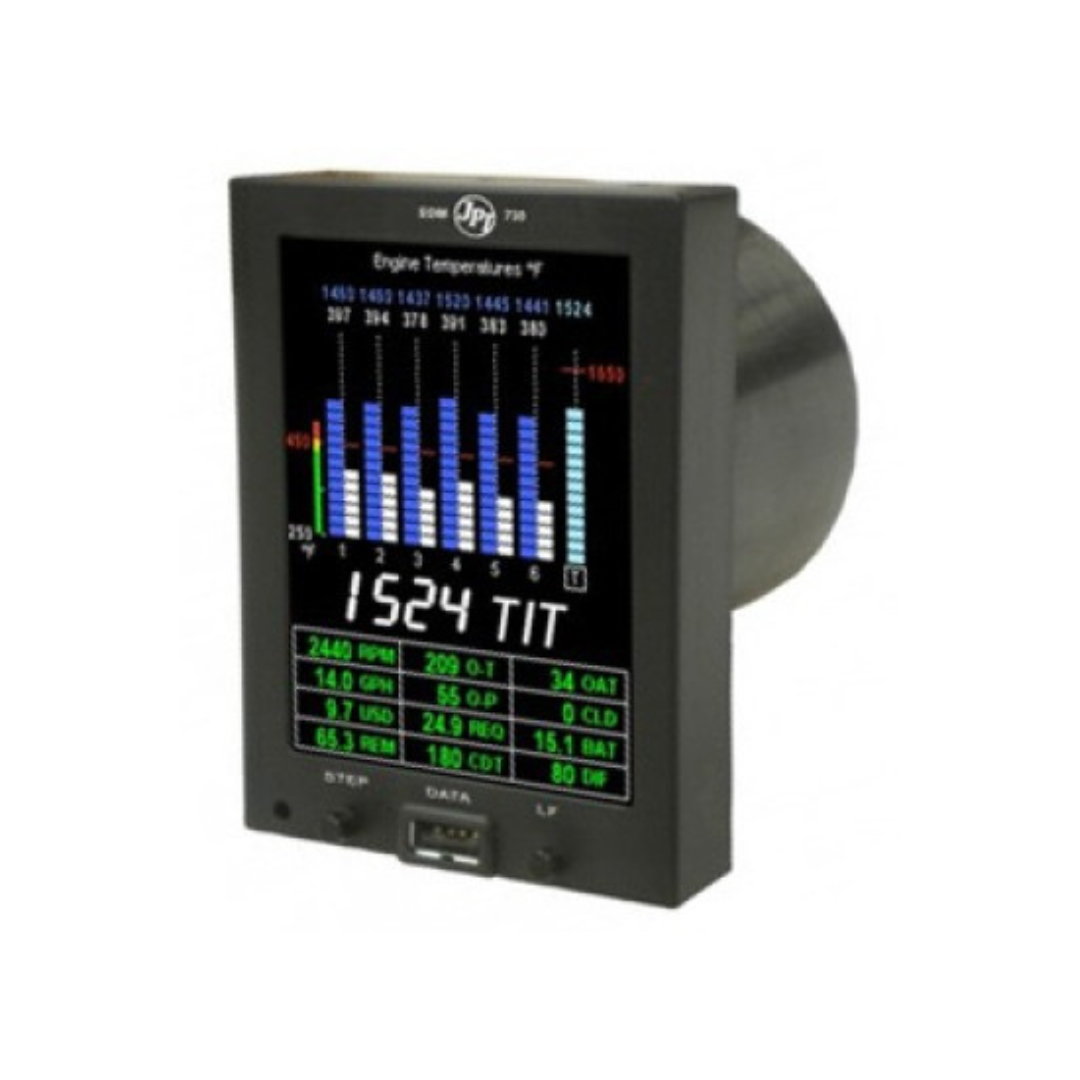

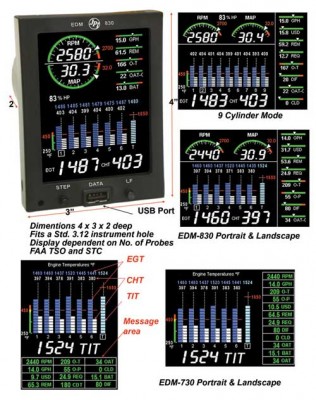

| The EDM-730/830 revolutionizes engine monitoring by the integration of brilliant full color graphical LCD display with the extremely popular EDM 700/800 series functionally and yet reduces the package size to the smallest on the market! The EDM-730 packs more features, functionality, and information onto its large full color screen than any other monitor available and features larger characters for easier reading. Oil pressure has also been added to the entire EDM series line. Mounting is a breeze due to its standard 3-4/8″ format, and because it can be mounted in either portrait or landscape orientation, thus accommodating virtually any panel configuration. Depth behind the panel is an amazing 2-1/2″. The unit is “Plug and Play” compatible with existing EDM-700/800 units.
Bayonet & Adapter: This option includes 3 bayonet probes and 1 adapter allowing existing CHT probe to gauge to receive data so both the existing CHT gauge and the EDM 730 can display the CHT info at the same time. Full Color LCD Display:
Package Form Factor:
|
| Brands | |
|---|---|
| Select Model | No Fuel Flow, With 201 FF (Fuel Pump), With 231 FF (Gravity Fed) |
| Selec Cylinders | 4 Cylinders, 6 Cylinders, 7 Cylinders, 8 Cylinders, 9Cylinders |
| Select Bayonet / Adapter Probes: | Bayonet & Adapter, All CHT Bayonet |
Features
- User programmable engine parameters.
- Percent Horsepower.
- Rich of peak or lean of peak operation at the tough of a button.
- RPM and manifold pressure with full graphical depiction.
- Full function fuel flow computer system.
- Links to GPS for enhanced fuel management.
- Full EDM scanner functionality.
- Unit easily set to display in either portrait or landscape mode
- Monitors: 4/6/7/8/9 cylinder engines, Turbocharged engines, RPM, MP, %HP, IAT, CDT, OAT, CAT, OIL P, OIL T, CHT, EGT, VOLTS, EGT, DIF, CLD, F FLOW, F USED, F REQD, F ENDUR, F REM
Functions
Included Functions
- EGT 4 or 6 Probes
- CHT 4 or 6 Probes
- Volts
- Shock Cooling
- Span (highest to lowest EGT)
- LOP/ROP JPI Exclusive Leaning Mode
- Power Connector
- EGT/CHT Harness
- EZTrends
- Data recording – 100 hrs Download USB 1 GB Memory Stick
- Selectable Positions for Linear gauges
- 3 year warranty
Optional Functions
- Fuel Flow
- Oil Temperature
- Oil Pressure
- OAT
- TIT
- CDT
- IAT
- CARB Temperature
- RPM
- MAP
- % HP
