AB473-R POWERUP BENDIX MAGNETO REPAIR KIT

Part #: AB-473-R
PowerUp

AB473R

Call for price

Comparar

Overview

These magneto repair kits are designed to simplify the Bendix magneto overhaul process by providing all of the commonly needed overhaul parts in one convenient kit.

The Repair Kits contain the parts needed for minor repair such as a 500 hour inspection.

The Deluxe Repair Kits contain the parts needed for major repair such as a magneto overhaul.

These parts are highest quality direct replacement parts and are approved for installation and use on certificated aircraft. The Repair Kit and Deluxe Repair Kit for the Bendix -200, -201, and -202 series magnetos contain two sets of contact assembly kits. Some parts that may be need replacing during magneto overhaul are not included in these kits.

Magneto No: 10-51360-1 10-51360-3 10-51360-4 10-51360-6 10-51360-8 10-51360-26 10-51360-27 10-51360-28 10-51360-31

Magneto Type: S4R(L)N -20, -21



Peso 0.2 lbs
Dimensões 3.05 × 2.52 × 2.52 in
Brands

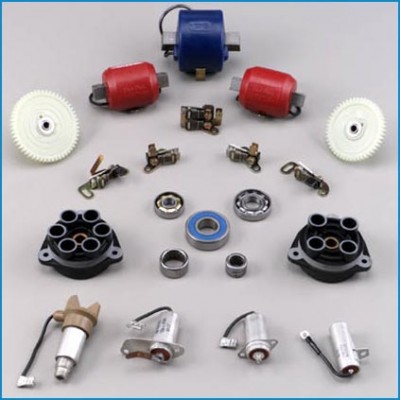

In The Box

  • Repair Kit
  • 1-CONTACT ASSY. KIT
  • 1-CAPACITOR
  • 2-BEARINGS
  • 1-OIL SEAL
  • 1-OIL SLINGER
  • 3-WOODRUFF KEYS
  • 1-COTTER PIN
  • 1-CAM SCREW
  • 1-FELT WASHER
  • 1-FELT STRIP
  • 1-SNAP RING
  • 1-CARBON BRUSH
  • Component part kits also contain installation hardware
