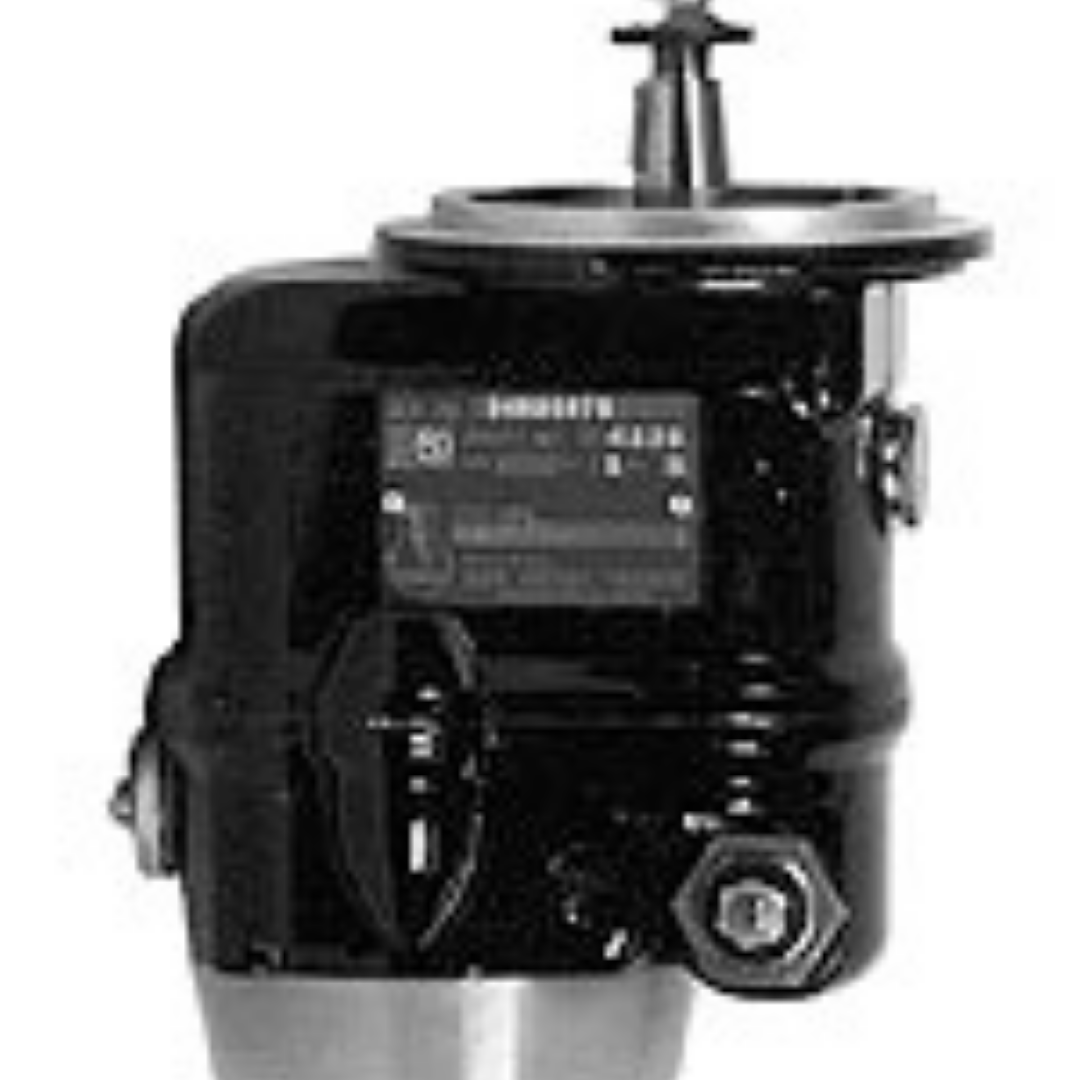

Aircraft Parts, Engine Parts, Magnetos & Parts, Slick 4300 Parts
M3410 SLICK GASKET
Part #: M3410
Comparar
| Peso | 0.45 lbs |
|---|---|
| Dimensões | 2 × 1 × .1 in |
| Brands |
Reference Chart
| Description | 4301 | 4302 | 4303 | 4316 | 4330 | 4331 | Qty |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | 1 |
| Nut | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | 1 |
| Washer | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | 1 |
| Impulse Coupling Assembly | M3007 | – | – | M3076 | M3068 | – | 1 |
| Oil Seal | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | 1 |
| Air Vent | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | 1 |
| Frame | M3859 | M3900 | M3859 | M3888 | M3888 | M3900 | 1 |
| Rotor | M3073 | – | M3338 | M3047 | M3065 | M3065 | 1 |
| Bearing Kit | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | 1 |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | 1 |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | 2 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | 2 |
| Contact Point Kit-Primary | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | 1 |
| Contact Point Kit-Secondary | – | – | – | – | – | – | 1 |
| Rotor Gear | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | 1 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | 1 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | 2 |
| Coil*(see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | 1 |
| Screw | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | 1 |
| Air Vent w/Hood | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | 1 |
| Screw | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | 3 |
| Housing, Dist. | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | 1 |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | 1 |
| Dist. Block & Gear Assembly | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | 1 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | 1 |
| Washer | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | 1 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | 2 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | 2 |
| 4300 SERVICE PARTS LIST cont… | |||||||
| Description | 4342 | 4344 | 4345 | 4347 | 4348 | 4353 |
Qty |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | 1 |
| Nut | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | 1 |
| Washer | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | 1 |
| Impulse Coupling Assembly | – | – | – | – | – | – | |
| Oil Seal | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | 1 |
| Air Vent | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | 1 |
| Frame | M3900 | M3900 | M3900 | M3900 | M3900 | M3900 | 1 |
| Rotor | M3548 | M3513 | M3548 | M3548 | M3513 | M3548 | 1 |
| Bearing Kit | K3301 | K3301 | K3301 | K3301 | K3301 | K3301 | 1 |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | 1 |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | 2 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | 2 |
| Contact Point Kit-Primary | M3637 | M3637 | M3637 | M3637 | M3637 | M3637 | 1 |
| Contact Point Kit-Secondary | M3740 | M3740 | M3637 | M3637 | M3637 | M3637 | 1 |
| Rotor Gear | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | 1 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | 1 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | 2 |
| Coil*(see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | 1 |
| Screw | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | 1 |
| Air Vent w/Hood | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | 1 |
| Screw | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | 3 |
| Housing, Dist. | M3874 | M3874 | M3832 | M3832 | M3832 | M3832 | 1 |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | 1 |
| Dist. Block & Gear Assembly | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | 1 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | 1 |
| Washer | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | 1 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | 2 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | 2 |
| 4300 SERVICE PARTS LIST cont… | ||||||||
| Description | 4354 | 4370 | 4371 | 4372 | 4373 | 4374 | 4381 | Qty Used |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | 1 |
| Nut | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | 1 |
| Washer | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | 1 |
| Impulse Coupling Assy. | M3529 | – | M3163 | M3100 | M3529 | M3689 | M3007 | 1 |
| Oil Seal | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | 1 |
| Air Vent | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | 1 |
| Frame | M3859 | M3900 | M3859 | M3859 | M3859 | M3888 | M3859 | 1 |
| Rotor | M3158 | M3548 | M3158 | M3158 | M3158 | M3065 | M3158 | 1 |
| Bearing Kit | K3301 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | 1 |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | 1 |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | 2 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | 2 |
| Contact Point Kit- Primary | M3637 | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | 1 |
| Contact Point Kit- Secondary | M3637 | – | – | – | – | – | – | 1 |
| Rotor Gear | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | 1 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | 1 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | 2 |
| Coil*(see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | 1 |
| Screw | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | 1 |
| Air Vent w/Hood | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | 1 |
| Screw | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | 3 |
| Housing, Dist. | M3832 | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | 1 |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | 1 |
| Dist. Block & Gear Assembly | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | 1 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | 1 |
| Washer | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | 1 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | 2 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | 2 |
