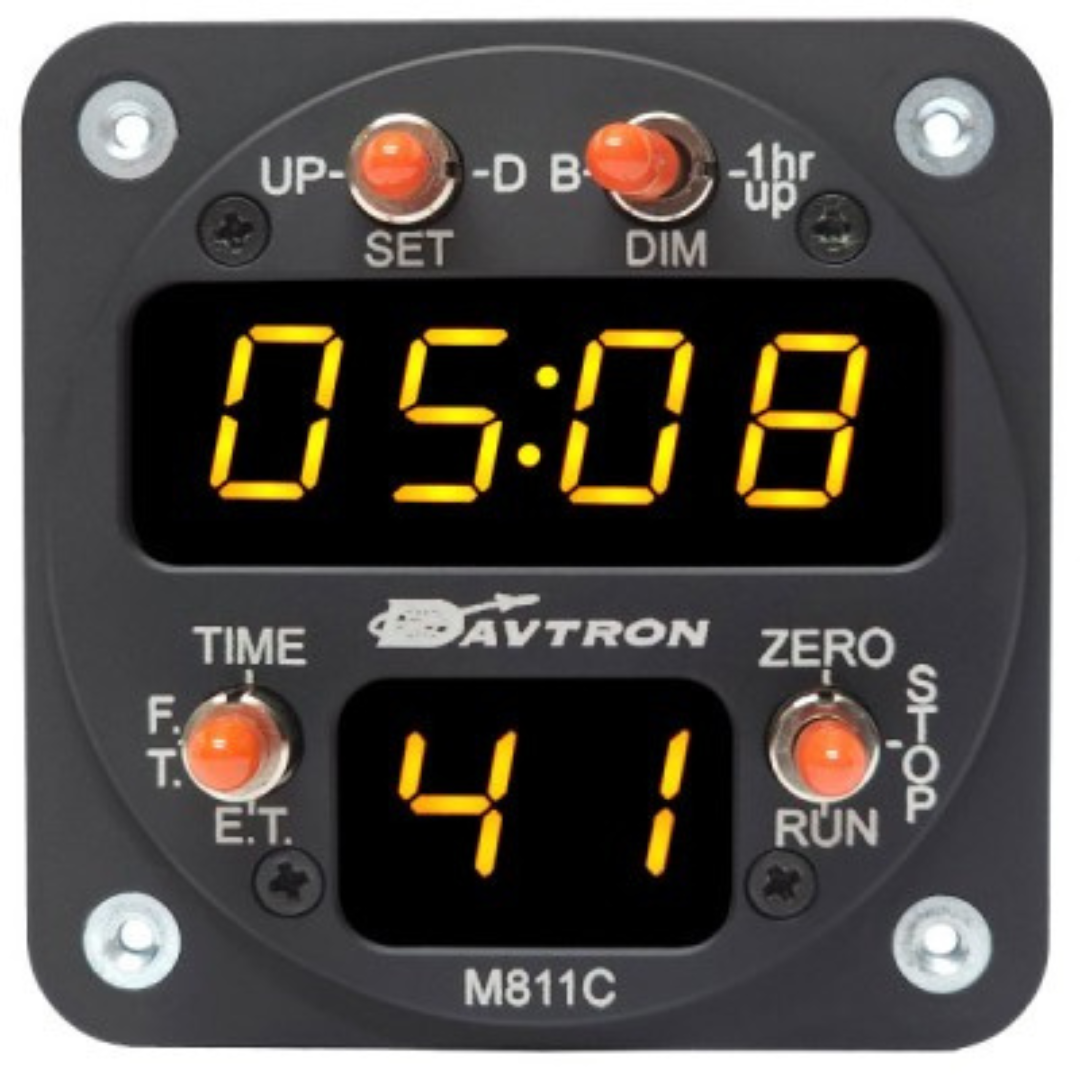

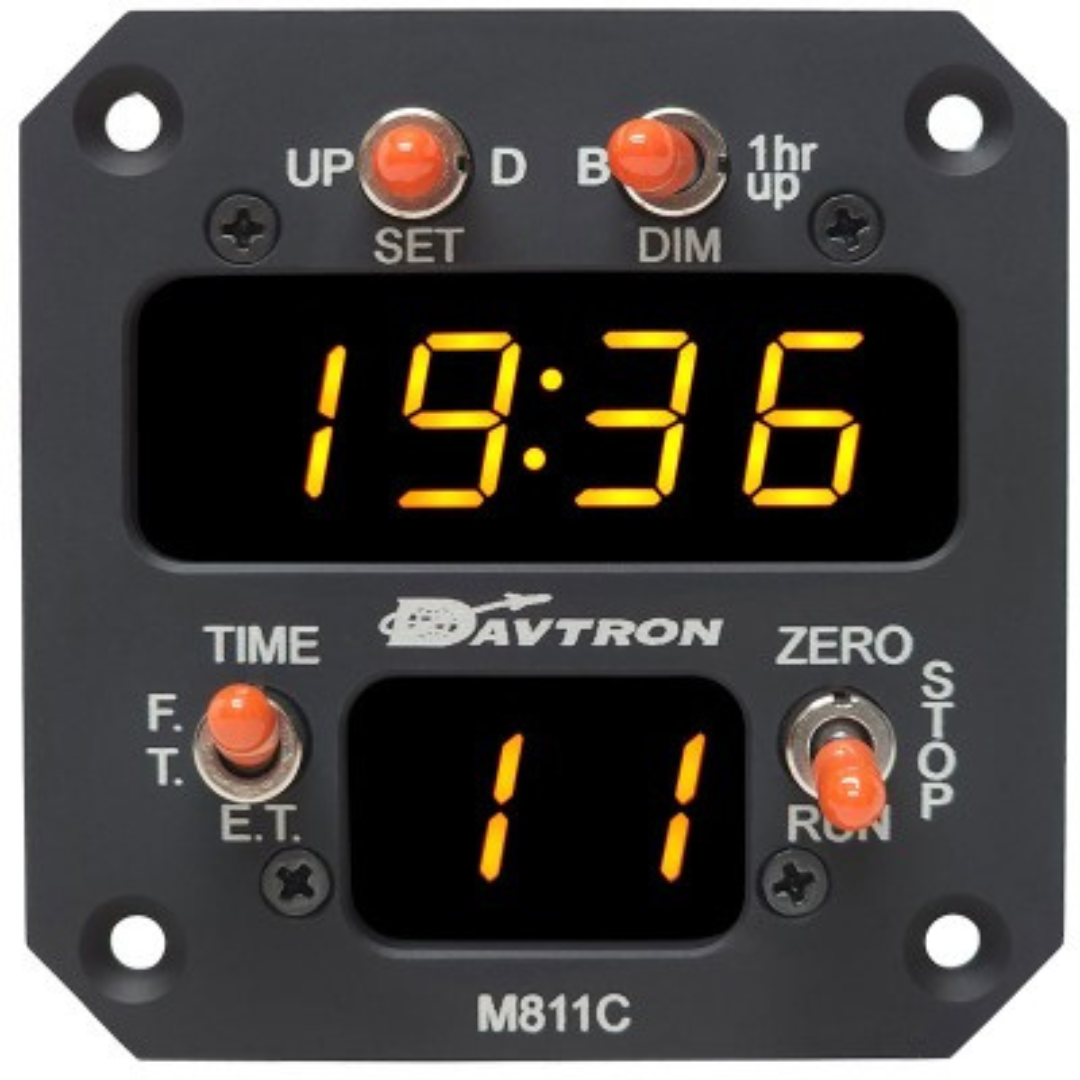

M811C-2 STANDARD BLACK INTERNAL MOUNT, LT (12 OR 24) HR, FT, ET/CDT, LED CLOCK

Specifications

• Six-digit display on all three functions
• Local Time: 12 hour or 24 hour option (user selectable)
• Flight Time: 24 hour
• Elapsed Time Count Up: 24 hour
• Elapsed Time Countdown with flashing alarm
• Precision/Extreme Accurate Clock IC Industrial – 40°C to 85°C
• Memory Battery supplied with a typical 5 year operating life.
• LED Displays: Readable in Sunlight
• LED Backlight: (Toggle Switch (BRIGHT / OFF / DIM)
• Input Voltage: 9 Volts
• Black Faceplate: Engraved Nomenclature
• Polycarb Lens filter – Light Shield
• Warranty: 1 year

FAA Approval

Davtron Inc has determined that installation of all Davtron products are considered minor according to (FAR) 21.93(a). All of our units are similar in design, with their electrical, mounting size, and weight being similar. Even though we consider installation of Davtron products to be minor, it is up to the installing mechanic to determine if the installation is minor or major. For a minor, a maintenance log book entry is all that is required. The FAA has determined that the installation of replacement clocks in non-transport category airplanes is considered to be minor, therefore only a maintenance log book entry is required referencing letter 100S-GA-10-53 or NORSEE Approval from the FAA. For a major installation, a FAA 337 form may need to be filed with your local FSDO and a possible field approval done.
