Airframe Parts, Cessna Parts, Seat Components

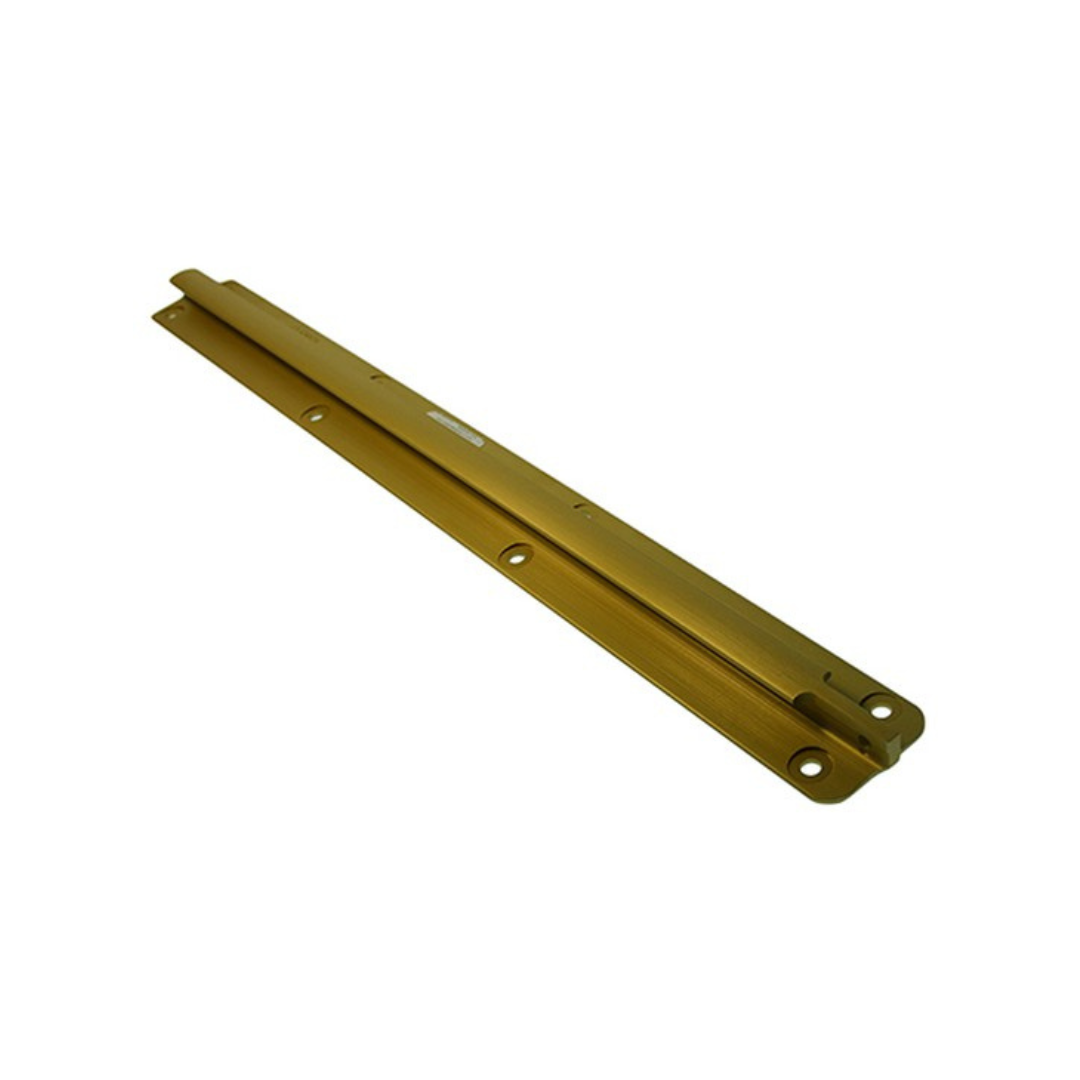

MC0410219-2 SEAT RAIL
Part #: MC0410219-2
MC04102192
Comparar
Overview
| These seat rails have only pilot holes drilled in the rail base allowing the installer to exactly match the aircraft floor rivet pattern. The manufacturer discovered while installing and developing our replacement seat rails that the seat rail attachment hole pattern was not consistant from aircraft to aircraft. Even small inconsistancies in the hole locations in the aircraft floor make installation of new seat rails very difficult. For this reason, all these seat rails have only a few smaller pilot attachment holes drilled at the factory. This allows the installer to precisely locate the attachment holes to match the holes in the aircraft floor. All special sized or machined attchment holes are factory machined to finish dimensions. It is necessary to install all required fasteners when seat rails are installed.
After studying countless worn and failed seat rails these rails were designed with 15% more metal in critical areas. The result is more crack resistant, durability, strength and longer life. Installation Tip: The aircraft floor is subject to corrosion from moisture under the seat rails, be sure to remove and treat any corrosion before installing the new seat rails. |
| Peso | 0.15 lbs |
|---|---|
| Dimensões | 15 × 1.5 × .54 in |
| Brands |
Não há avaliações ainda.
