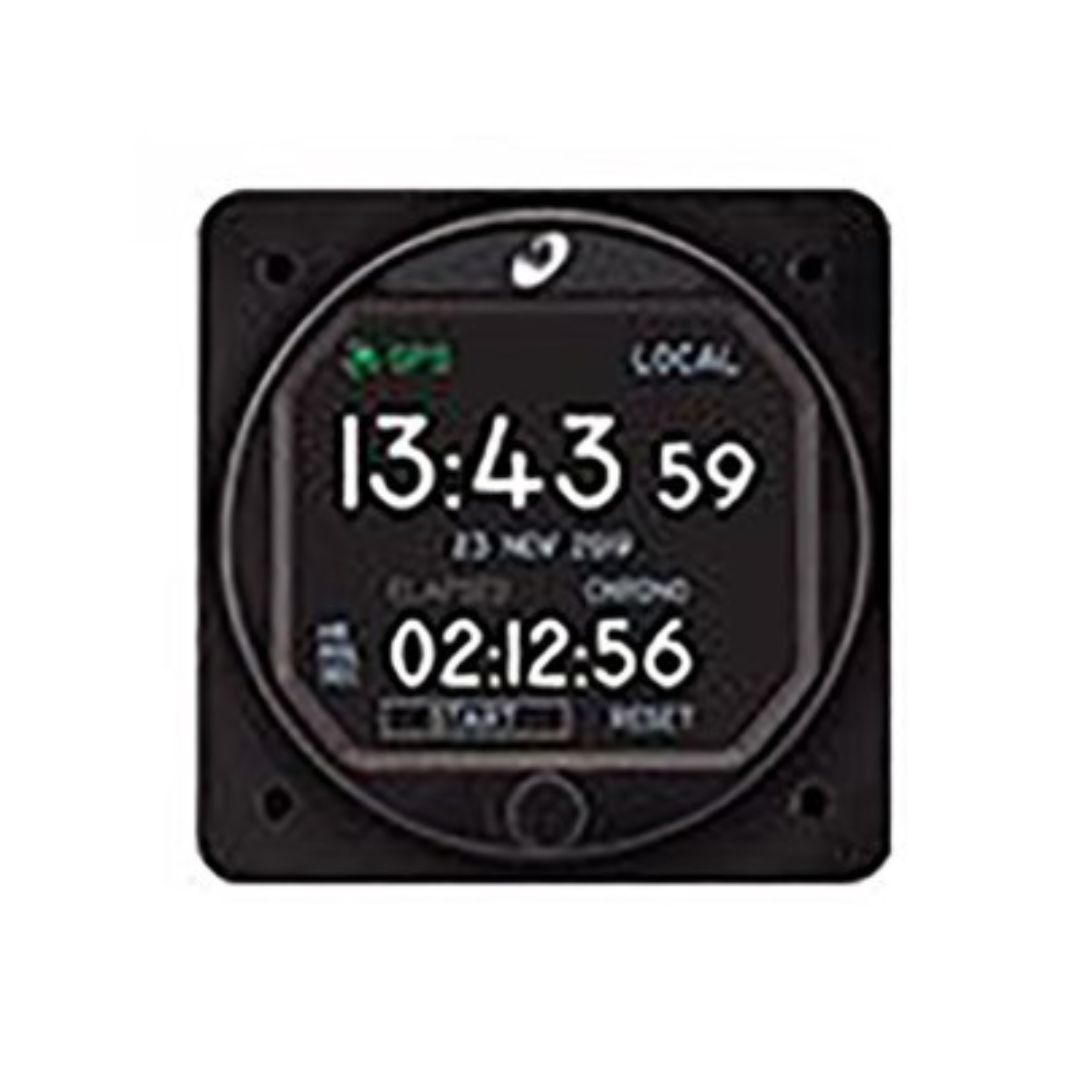

MD23-190 MID-CONTINENT FLEX MD23-190 DIGITAL GPS CLOCK
Part #: MD23-190
Availability:
Disponível por encomenda
MD23190
R$35,901.67
Disponível por encomenda
CompararOverview
| Digital GPS Clock 2-inch, 10-32 VDC, LCD, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Date, Time to Waypoint, Hobbs, Run Timer |
| Peso | 0.18 lbs |
|---|---|
| Dimensões | 2.43 × 2.43 × 1 in |
| Brands |
Features
- 9 Functions Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Date, Time to Waypoint, Hobbs, Run Timer
- Receives ARINC 429 input to sync with a GPS source
- Maintains accuracy, even if GPS input is unavailable
- Outputs time to external equipment and provides Estimated Time (ET) to your next waypoint
- Clock settings include 12- or 24-hour mode and seconds ON or OFF
- Standard 2-inch size
- Lightweight — 0.4 lbs
- Simple user interface — Single, push-and-turn control knob
- Daylight readable LCD and smooth, high-resolution graphics
- Manual external lighting control or built-in photocell for automatic dimming
- Night Vision Imaging System (NVIS) compatible (available)
- Field-upgradeable software via standard USB-A port
- TSO-certified (Design Assurance Level A)
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Power Input:
- 10–32 VDC
- 0.14A @ 28 VDC; 4 watts nominal
- Data Input: ARINC 429: Low or high speed; Labels 150, 252
- Data Output: ARINC 429: Low or high speed; Label 150
- Lighting: 5, 14, or 28 VDC external control or internal photocell for automatic dimming
- Battery: Rechargeable coin cell (memory only)
- Weight: 0.4 lbs
- Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
- Dimensions: 2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters)
- Mating Connector: MCIA P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
- Certification:
- FAA TSO certified to C113b
- RTCA DO-160G qualified
- RTCA DO-178C qualified, Design Assurance Level (DAL) A
- Rights: U.S. Patent 11,048,389
