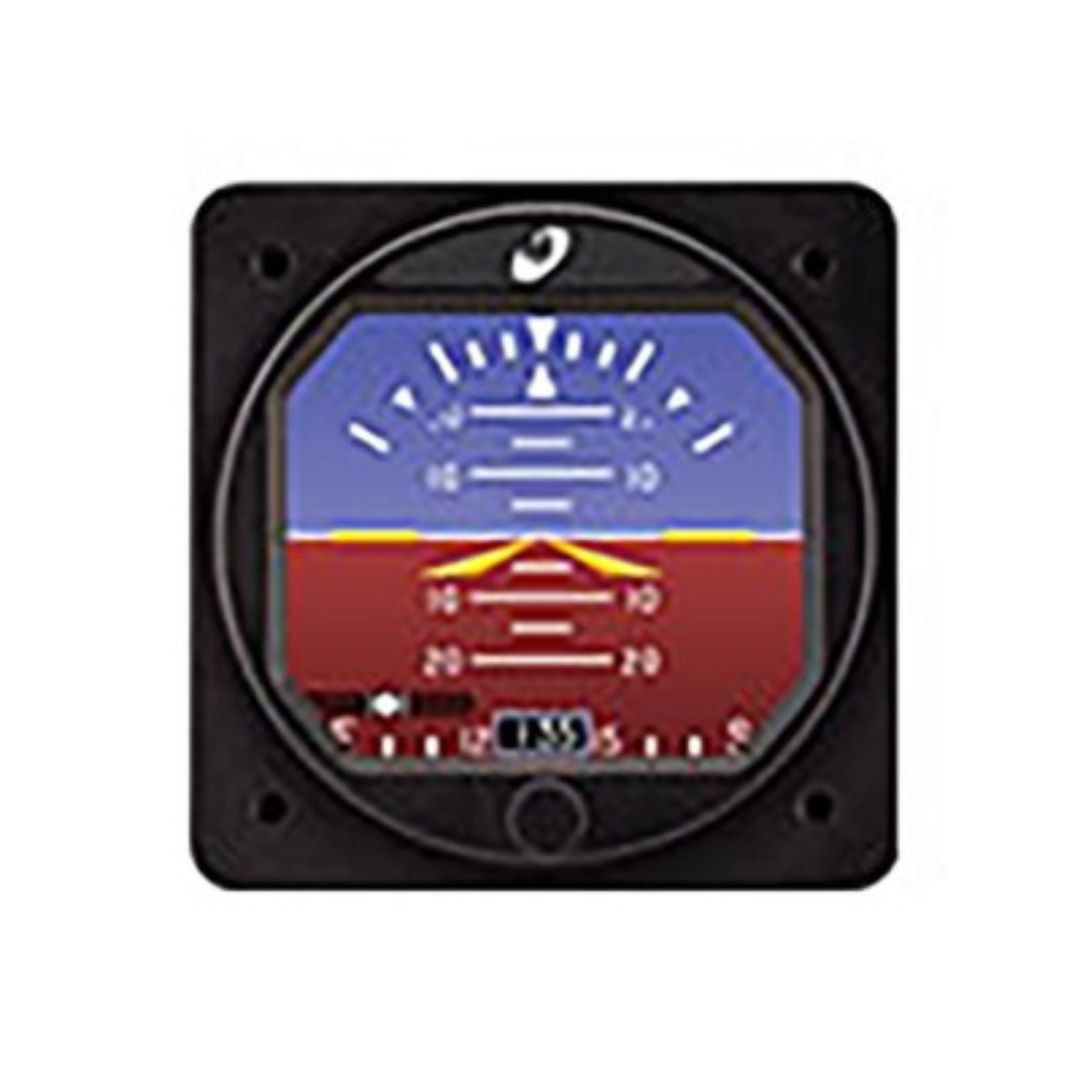

MD23-342 DIGITAL ATTITUDE INDICATOR SLIP TURN RATE HEADING LCD
Part #: MD23-342
Availability:
Disponível por encomenda
MD23342
R$58,486.43
Disponível por encomenda
CompararOverview
| Mid-Continent Flex MD23-342 2″ Digital Attitude Indicator Slip Turn Rate Heading LCD |
| Peso | 0.18 lbs |
|---|---|
| Dimensões | 2.43 × 2.43 × 1 in |
| Brands |
Features
- Four primary functions: Attitude, slip, turn rate and heading
- Heading with primary avionics via external ARINC input
- Primary functions utilize modern solid-state MEMS gyro and accelerometer
- Easy installation with user-selectable panel tilt and roll-offset
- Fits standard 2-inch panel cutout
- Lightweight — 0.4 lbs
- Simple user interface — Single, push-and-turn control knob
- Daylight readable LCD and smooth, high-resolution graphics
- Manual, external lighting control or built-in photocell for automatic dimming
- Night Vision Integrated System (NVIS) compatible (available)
- TSO certified to Design Assurance Level A
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Power Input: 10–32 VDC
- 0.14A @ 28 VDC; 4 watts nominal
- Data Input: ARINC 429: Low or high speed; Label 320
- Data Output: ARINC 429: Low or high speed; Labels 320, 324, 325
- Operating Range: Attitude: 360° angle, 500° per second for pitch and roll (maximum)
- Lighting: 5, 14, or 28 VDC external control or internal photocell for automatic dimming
- Weight: 0.4 lbs
- Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
- Dimensions: 2.43 x 2.43 x 1.0 inches
- Mating Connector: P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
- Certification: FAA TSO certified to C3e, C4c, C8e, C10c, C106, C113b, C201
- RTCA DO-160G qualified
- RTCA DO-178C qualified, Design Assurance Level (DAL) A
- Rights: U.S. Patent 11,048,389
