Annunciators, Avionics & Instruments, Instruments, Mid Continent

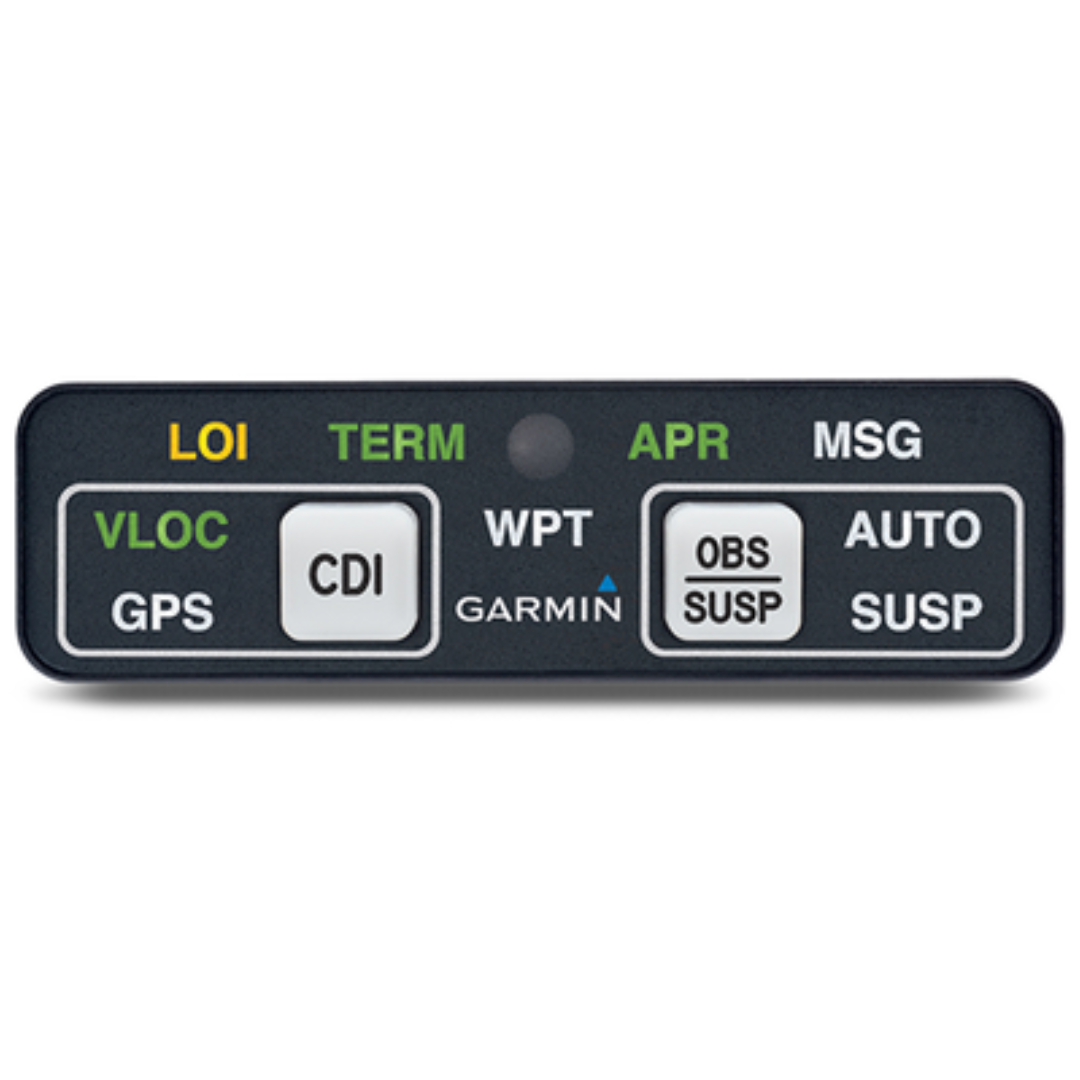

MD41-1514 Horizontal, 28V, 5V lighting, LED lighting
Part #: MD41-1514
Availability:
Disponível por encomenda
MD411514
R$9,686.21
Disponível por encomenda
CompararOverview
| With fingertip annunciation and flight information in the pilot’s primary view, annunciation control units (ACUs) offer important features in an efficient design. As an interface with popular NAV and GPS systems, the ACU provides vital safety information, including waypoint, approach status and integrity alerting.
Approved to strict TSO standards, Mid-Continent ACUs are engineered as a compact, affordable solution to the challenge of installing several switches. Most versions are configured 14V or 28V with vertical or horizontal mounting and feature long-life lamps or LEDs with automatic photocell dimming. |
| Peso | 0.12 lbs |
|---|---|
| Brands |
Specifications
Orientation
Horizontal
Power Input
14VDC
Lighting Input
14VDC
Power Requirement
.20 A max
Dimensions
.80”H x 2.73”W x 3.20”D
Weight
.26 lb.
Mating Connector
Positronic RD25F10JVL0 or equivalent (MCI P/N 7014517)
Instrument Panel Mounting
Rear mount
Certification
FAA TSO-C129
Environmental Qualification
RTCA DO-160
Features
- Compatible with Garmin GTN 6XX/7XX WAAS Navigators
- Incudes CDI and suspend mode switching, independent of OBS per new GTN requirements
- Compact, self-contained GPS annunciation control unit
- Automatic-dimming and daylight readable LED lighting
- Single cutout and locking D-subminiature connector reduces installation costs
- Quality Mil-Spec connector included
- TSO-C129 certified
- Qualified to RTCA DO-160 environmental specs
- Designed and built in Wichita, Kansas, USA
- One-year limited warranty
