Accesories, Avionics & Instruments, Instruments, Mid Continent
MD41-248 24-pole, 28V, TSO
Part #: MD41-248
Availability:
Disponível por encomenda
MD41248
R$13,184.03
Disponível por encomenda
CompararOverview

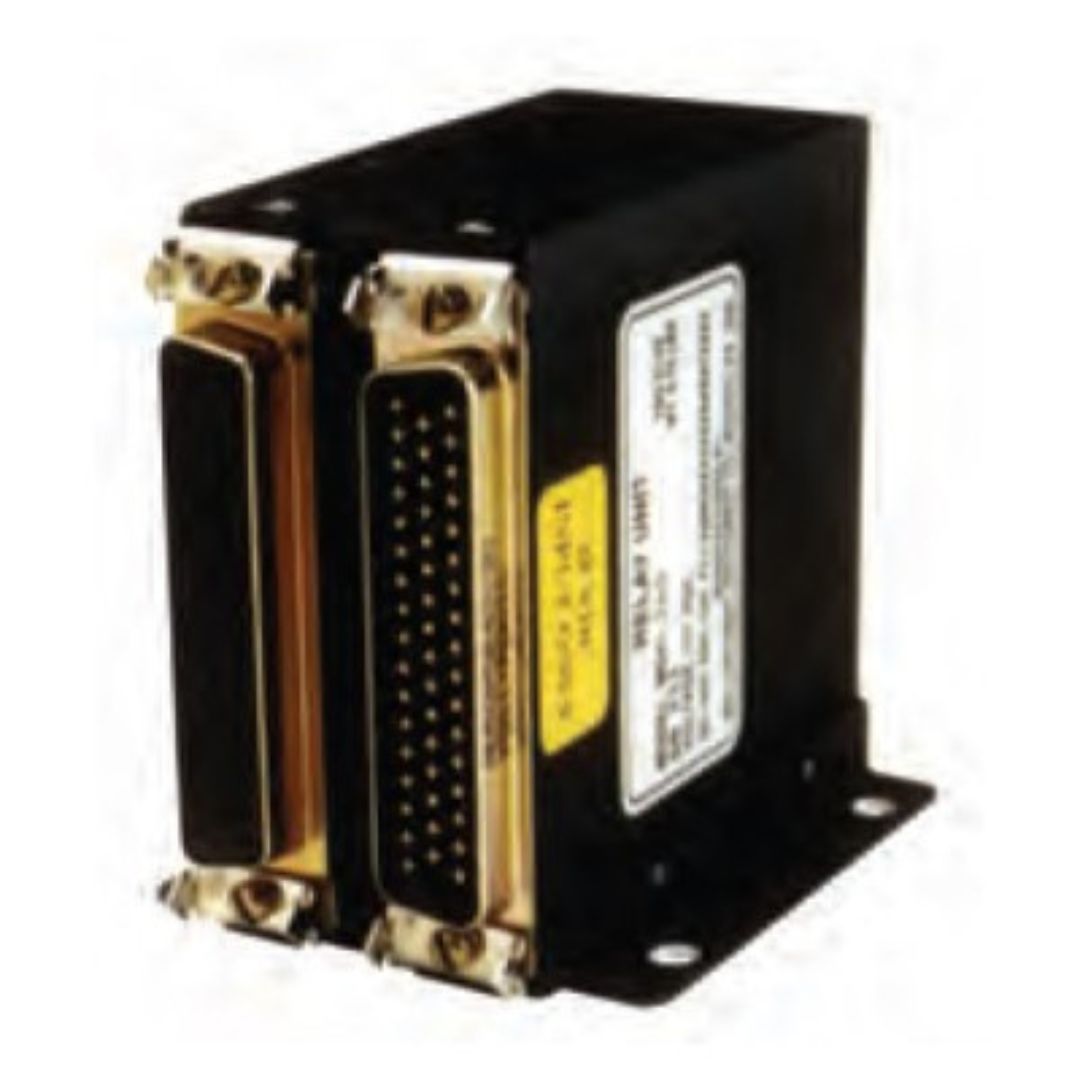

| This remote-mounted 24-pole unit features eight nitrogen-filled relays (3 poles per relay) with gold-plated contacts. Ideal for GPS/VOR transfer and audio switching applications, this unit provides unequaled integrity with fail-safe fault monitoring through interlocking of all internal relays. |
| Peso | 0.34 lbs |
|---|---|
| Brands |
Features
- Remote mounted 24-pole unit features eight Nitrogen-filled relays (3 poles per relay) with Gold-plated contacts
- Ideal for GPS/VOR transfer and audio switching applications
- Relays are activated individually by voltage or ground keying or as a group by ground keying
- FAA PMA Approved (certified to 55,000 ft.)
- Versatile Mounting – Horizontal, Vertical or flat mount configurations
- Fail-safe fault monitoring through interlocking of all internal relays
- Adjustable dimmer output for external annunciations
- Quality MIL-SPEC connector kit included
Specifications
- Width: 2.86″
- Height: 1.52″
- Depth: 2.6″
- Weight: .75lbs
