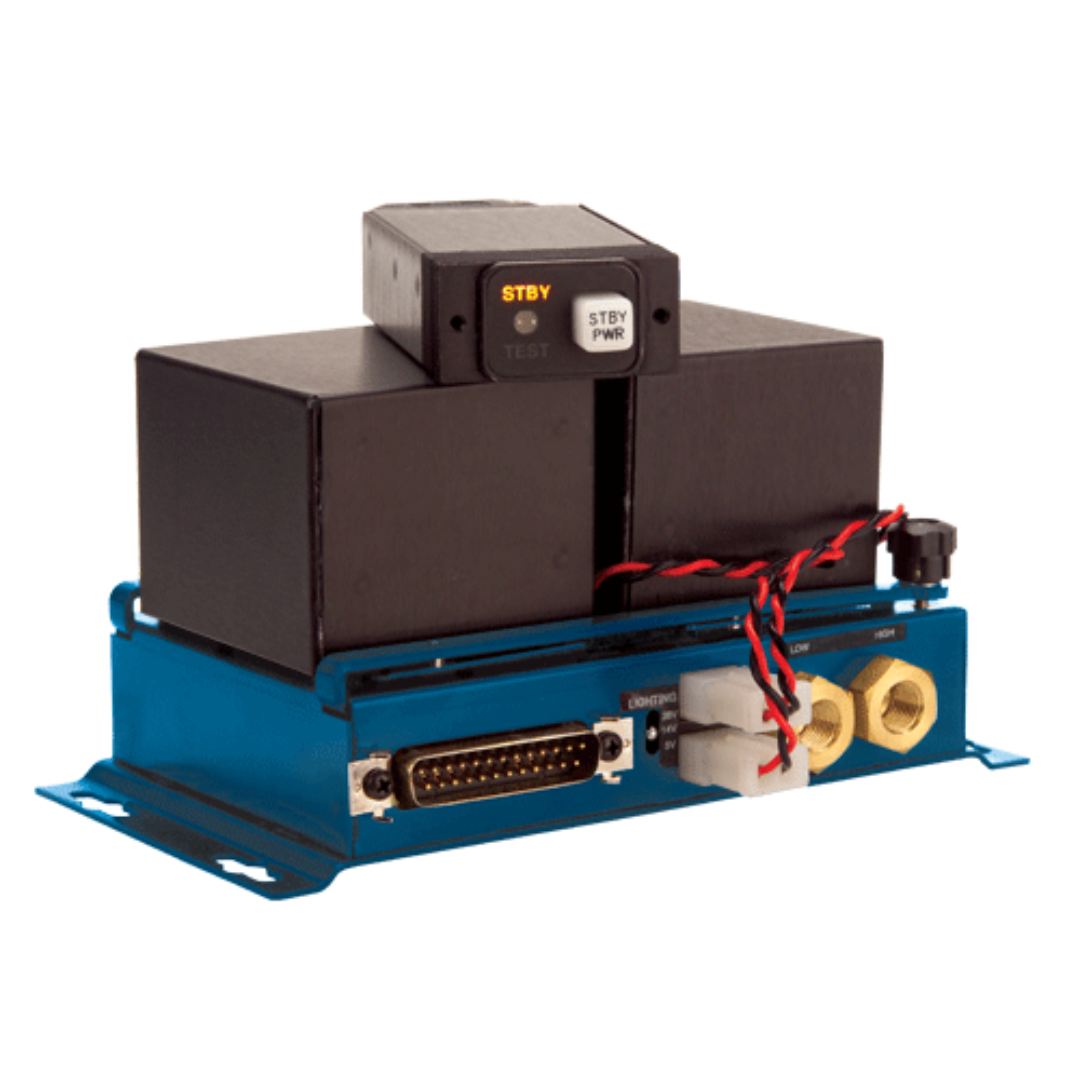

Battery Backup System
18 VDC, 1.0 Ah, Battery module and annunciator, NiMH battery
R$32,628.79
CompararBattery Backup System
18 VDC, 1.0 Ah, Battery module and annunciator, NiMH battery
Peso | 1.45 lbs |
---|---|
Dimensões | 3.35 × 6.75 × 3.38 in |
Brands |
National Stock Number (NSN)
6130-01-564-7588
Capacity
1.0 Ah (0.05C) at 25° C
Input Power
10 – 32 VDC, 0.25A nominal, 4.0A max
at 14 VDC/2.0A max at 28 VDC
Output Power
18 VDC nominal, 1.6 amps max
Weight
3.2 lbs
Dimensions (approx.)
3.35” H x 6.75” L x 3.38” W
Mating Connector
25-pin female D-Sub (MD25F20JVL0 or equivalent)
9-pin female D-Sub (MD9F20JVL0 or equivalent)
Annunciator Lighting
LED backlighting, automatic internal dimming
Battery Charging
Automatic recharging when main power is present
Compatibility
Provides 60 minutes or more of backup power to Mid-Continent’s Electric Attitude Indicator Model 4200 or 4300 and lighting power for two additional instruments (5, 14 or 28V)
Battery run time will vary depending on total power load and battery charge status
Certification
FAA TSO-C4c certified
RTCA DO-160E certified
