OPT200AK Oil Pressure, Oil Temperature, Voltmeter & Ammeter Kit
Part #: OPT200AK
Comparar
Overview
OPT200AK Oil Pressure, Oil Temperature, Voltmeter & Ammeter Kit

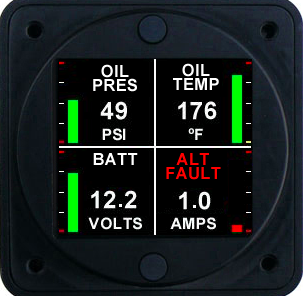

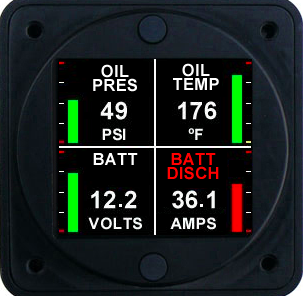

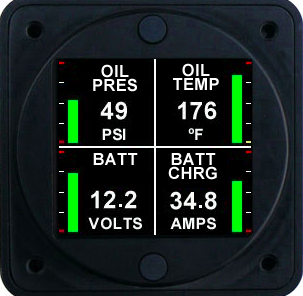

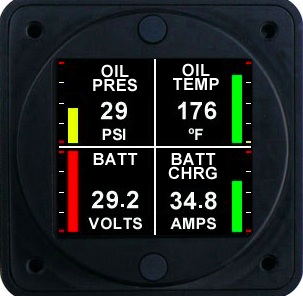

The OPT200A is an advanced, next generation oil pressure, oil temperature, ammeter/loadmeter and voltmeter combinational instrument.
Oil temperature functionality is TSO’d and STC’d and meets the temperature accuracy requirements of SAE AS8005, while oil pressure meets the requirements of AS408C. Ammeter / loadmeter and voltmeter functions are STC’d
Functional displays include real-time analog data depiction and digital value display for all reported data.
The OPT200A is TSO’d and STC’d as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

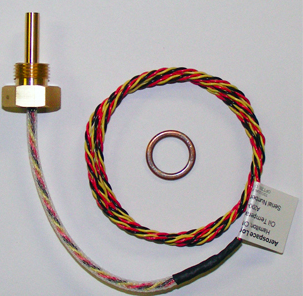

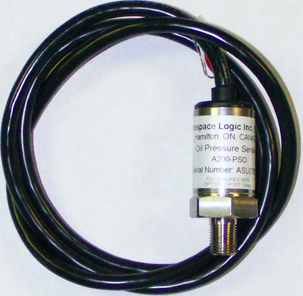

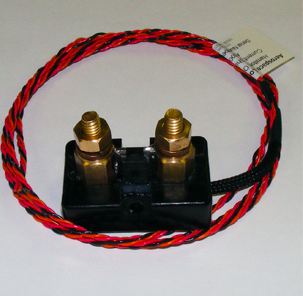

This kit includes complete wiring harness, an A200-TSO oil temperature sensor, an A200-PSO oil pressure sensor and an A200-HAS hall effect current shunt, plus all installation hardware.
| Peso | 1.84 lbs |
|---|---|
| Dimensões | 2.45 × 2.45 × .9 in |
| Brands |
Certification / Compliance
TSO C43c and C47a
Canadian STC
FAA STC
EASA STC
Certified as primary replacement for all functions
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Temperature: 0V to 3.0V
Pressure: 0.5V to 3.0V
Current: 0V to 3.0V
Display Units
Oil Temperature: 32ºF – 302ºF (User selectable ºF or ºC)
Oil Pressure: 0 – 125PSI
Ammeter: +/- 100A
Voltmeter: 6V to 36V
Accuracy
Oil Temperature: AS8005 +/- 1% FS
Oil Pressure: AS408C +/- 1PSI
Ammeter: +/- 1A
Voltmeter: +/- 0.1V
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary oil pressure, oil temperature, voltmeter and ammeter |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
