RAMI ANTENNA COUPLER / 50 OHMS – AV-586
Part #: AV-586
AV586
Comparar
PNs Alternativos

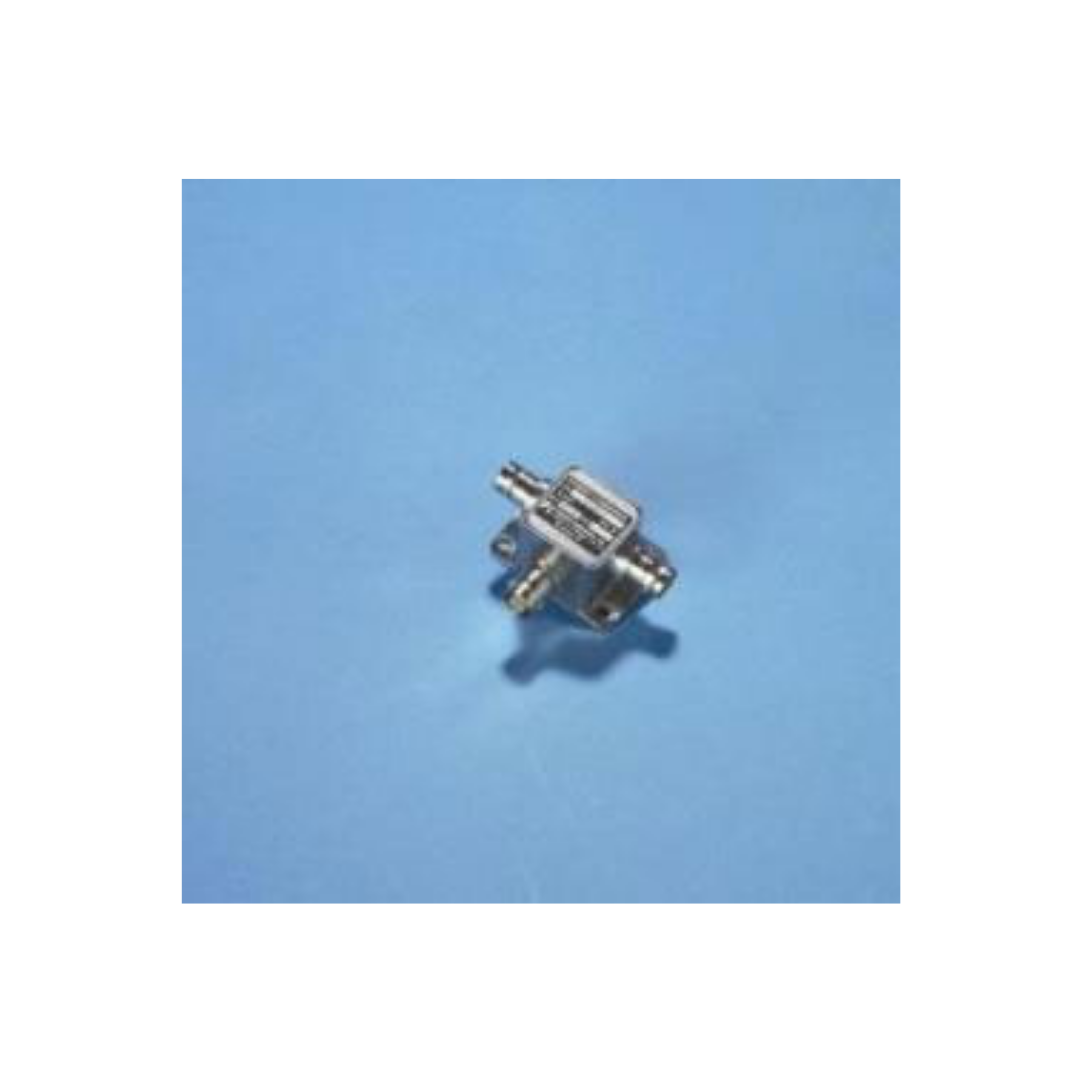

- PN: CI-5120 - View
Overview
| The AV-586 antenna coupler is an antenna signal splitter that provides two outputs from a single antenna. The AV-586 is designed to provide the necessary signals to two newer navigational radios that only have one antenna input to receive VOR/LOC/GS signals. |
| Peso | 0.11 lbs |
|---|---|
| Brands |
Specifications
| Model | AV-586 |
| Application | Navigation Receive |
| Frequency | Port 1: Antenna Port 2: NAV/LOC/GS Port 3: NAV/LOC/GS |
| Impedance | 50 Ohms Nominal |
| VSWR | 1.40:1 Max. |
| Insertion Loss | less than .6 dB above 3.0 dB |
| Isolation | greater than 22 dB |
| Connectors | “BNC” Female |
| RF Power Capacity | Receive Only |
| Color | Black |
| Max. Weight | 0.25 lbs. |
| FAA TSO | C34e, C36e, C40e |
