RAMI AV-1 BASE STATION ANTENNA
Part #: AV-1
AV1
Comparar
Overview

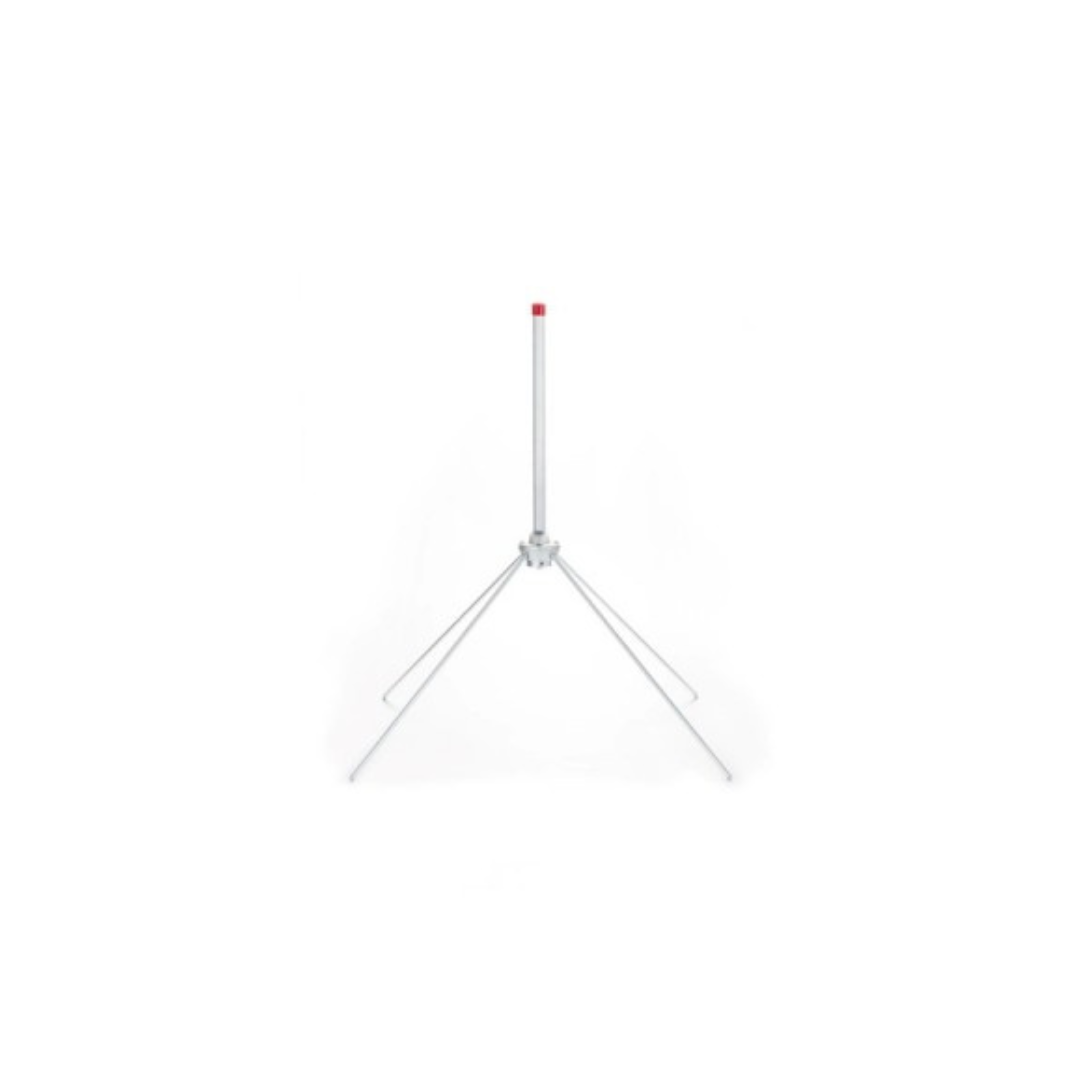

| The AV-1 is a base station antenna for comminucations with ground vehicles or aircraft. It has heavy-duty construction with 3/8″ diameter aluminum radials, a 1″ diameter aluminum tube radiator, and is iridite-treated for durability. It mounts easily to a 1″ diameter pipe or a 1-1/4″ O.D. tube with locking set screws. A built-in gap-type lighting arrestor is an important design feature. The antenna requires no additional tuning and is designed to withstand windspeeds of up 100 mph. |
| Peso | 1.55 lbs |
|---|---|
| Dimensões | 34 × 4.25 × 4.25 in |
| Brands |
Specifications
- Application: VHF Communications
- Frequency: 118 to 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.0 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: Type PL-259
- RF Power Capacity: 1000 Watts
