RAMI AV-289 TRANSPONDER / CELLULAR / WIFI / UMTS ANTENNA
Part #: AV-289
AV289
Comparar
Overview

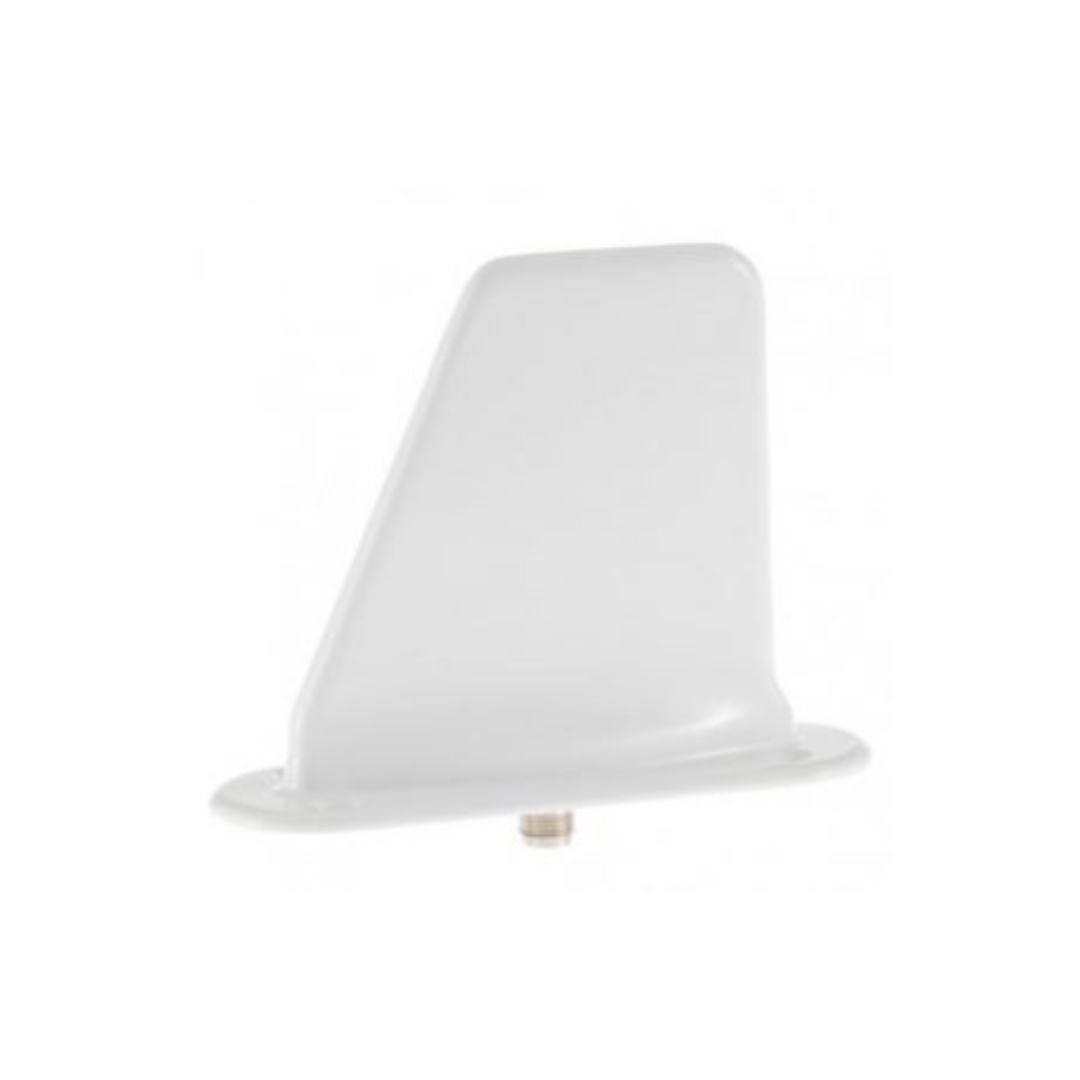

| The AV-289 is a broadband blade type antenna for application such as transponder, cellular, 4G, GSM, PCS, WIFI, and UMTS, however, it is FAA qualified as a transponder antenna. The antenna housing is constructed of a Polyarylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating mer MIL-C-5541. The antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet. |
| Peso | 0.27 lbs |
|---|---|
| Brands |
Specifications
Application
- Transponder, Cellular, 4G, GSM, PCS, WIFI , UMTS
Frequency
- 700-799 MHz (Non TSO Function)
- 800-849 MHz (Non TSO Function)
- 850-1029 MHz (Non TSO Function)
- 1030-1090 MHz (Non TSO Function)
- 1091-2700 MHz (Non TSO Function)
Impedance
- 50 Ohms Nominal
VSWR
- 2.8 Max at 700-799 MHz 2.8 Max
- 2.2 Max at 800-849 MHz
- 2.0 Max at 850-1029 MHz
- 1.5 Max 1030-1090 MHz
- 2.0 Max 1091-2700 MHz
Polarization
- Vertical
Connector
- “TNC” Female (optional: SMA, BNC and N)
Pattern
- Omni- Directional
Max Weight
- 0.60 lbs
RF Power Capacity
- 100 Watts Continuous, 1000 Watts Peak
Gain on 4 ft Round Ground Plane
- 4 dBi Nominal
Gain on 2 ft Round Ground Plane
- 3.5 dBi Nominal
Color
- Gloss White
