Overview
|

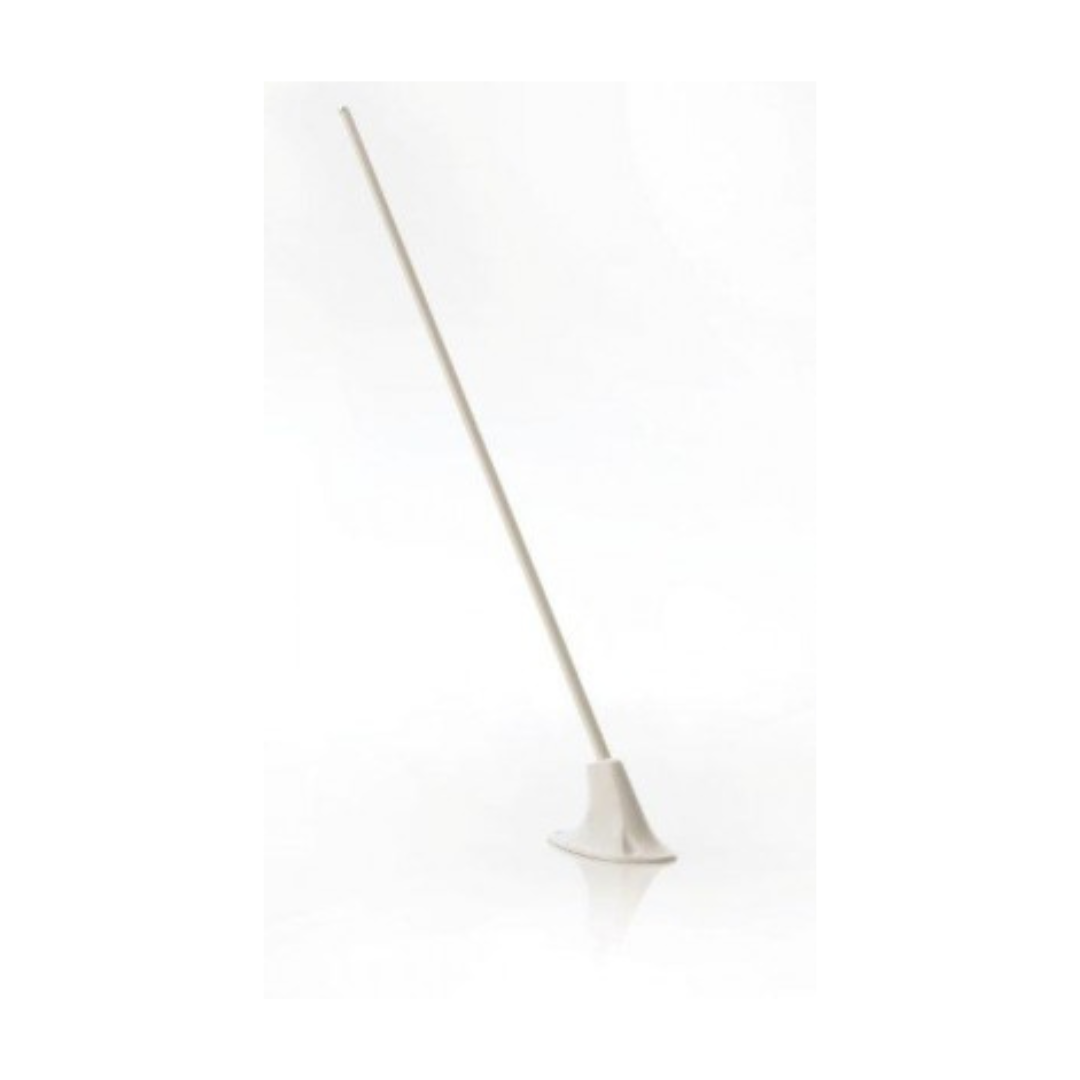

The AV-529 is designed for broadband communications (118-136 MHz). It has a die-cast aluminum base and a uniquely designed radiator encapsulated in a fiberglass whip. The antenna is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 3.43 lb @ 250 mph. |
| Peso | 0.44 lbs |
|---|---|
| Dimensões | 27.25 × 3.25 × 3.25 in |
| Brands |
Specifications
- Application: Airborne Communications
- Frequency: 118 to 136 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 1.8 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: Type “BNC” Female
- Max Weight: 8 oz
- Max Height: 20-1/4″
- RF Power Capacity: 25 Wats
