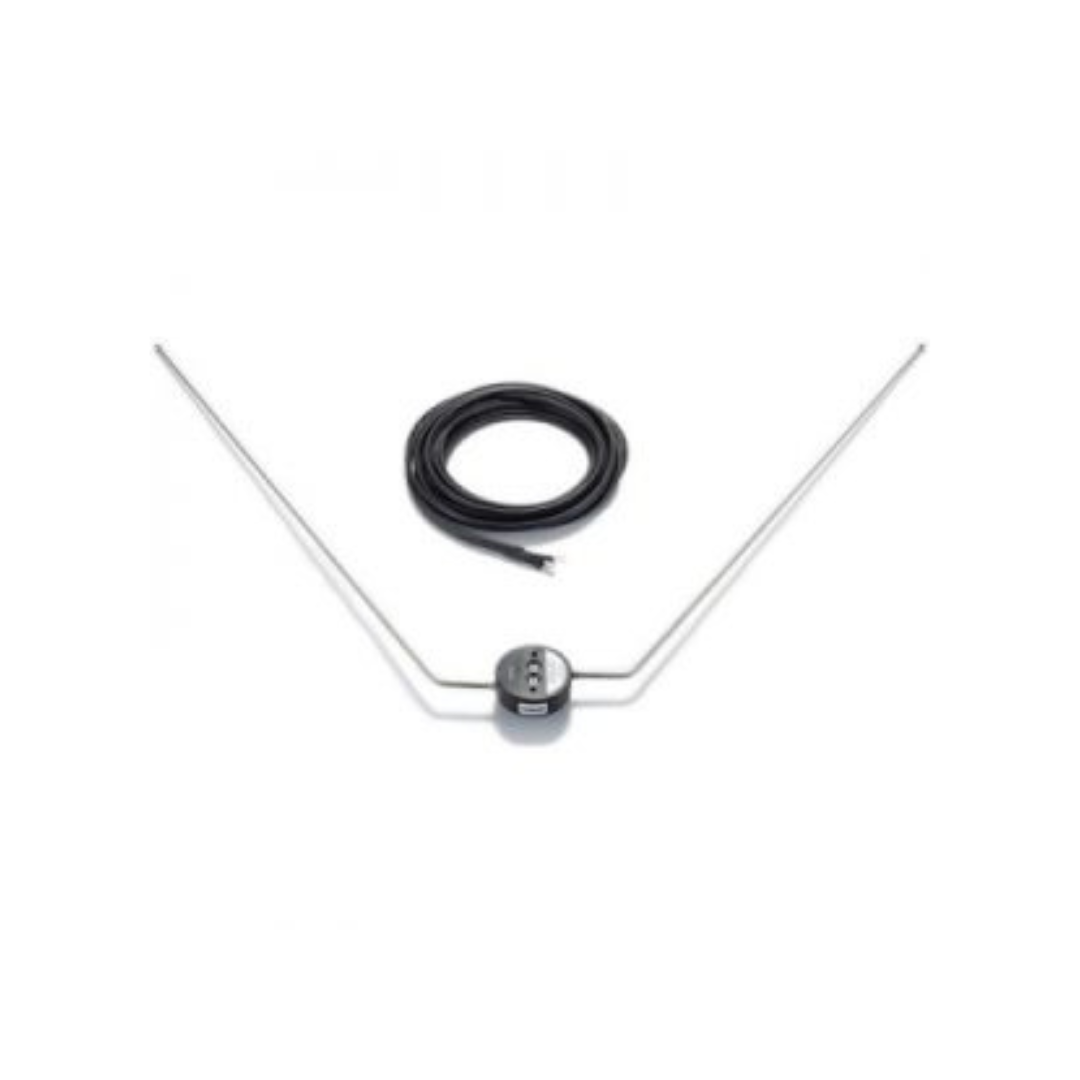

RAMI AV-532L VOR ANTENNA WITH CABLE
Part #: AV-532L
AV532L
Comparar
Overview
| The AV-532 is a VOR/LOC/GS receive only antenna which consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 ft. transmission line with integral balun is also supplied. |
| Peso | 3.47 lbs |
|---|---|
| Dimensões | 31.497 × 20.473 × 1.969 in |
| Brands |
Specifications
- Application: VOR/LOC/GS (Receive Only)
- Frequency: 108 to 118 MHz, 328-336MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.0:1 Maximum
- Pattern: Omni-Directional
- Connector: Threaded studs to accept transmission line assembly with integral balun transformer (included)
- FAA TSO: C40c
- Width Across Tips: 23-1/2″
