Overview
|

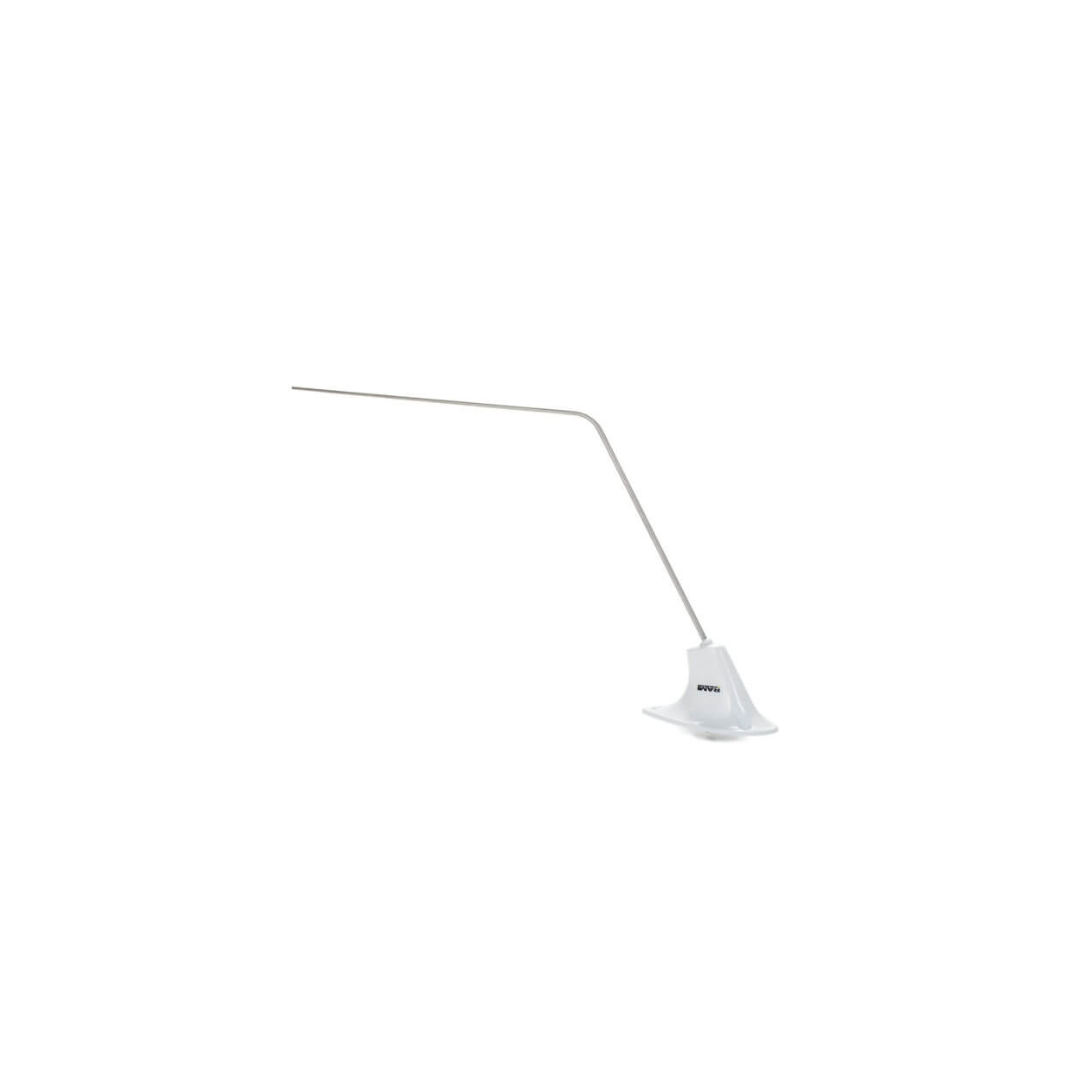

The AV-535 is a “Bent Whip” antenna suitable for belly mounting. It is designed to operate in the public service and business bands. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 292-3. Frequency: 138-174 MHz |
| Peso | 0.5 lbs |
|---|---|
| Dimensões | 25.5 × 6.5 × 3 in |
| Brands |
Specifications
- Application: FM Extended band
- Frequency: 138-174 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 3.0:1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: “BNC” Female
- FAA TSO: None
- Color: Gloss White
