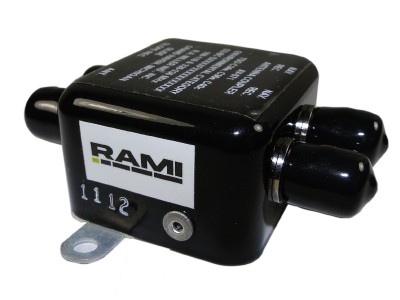

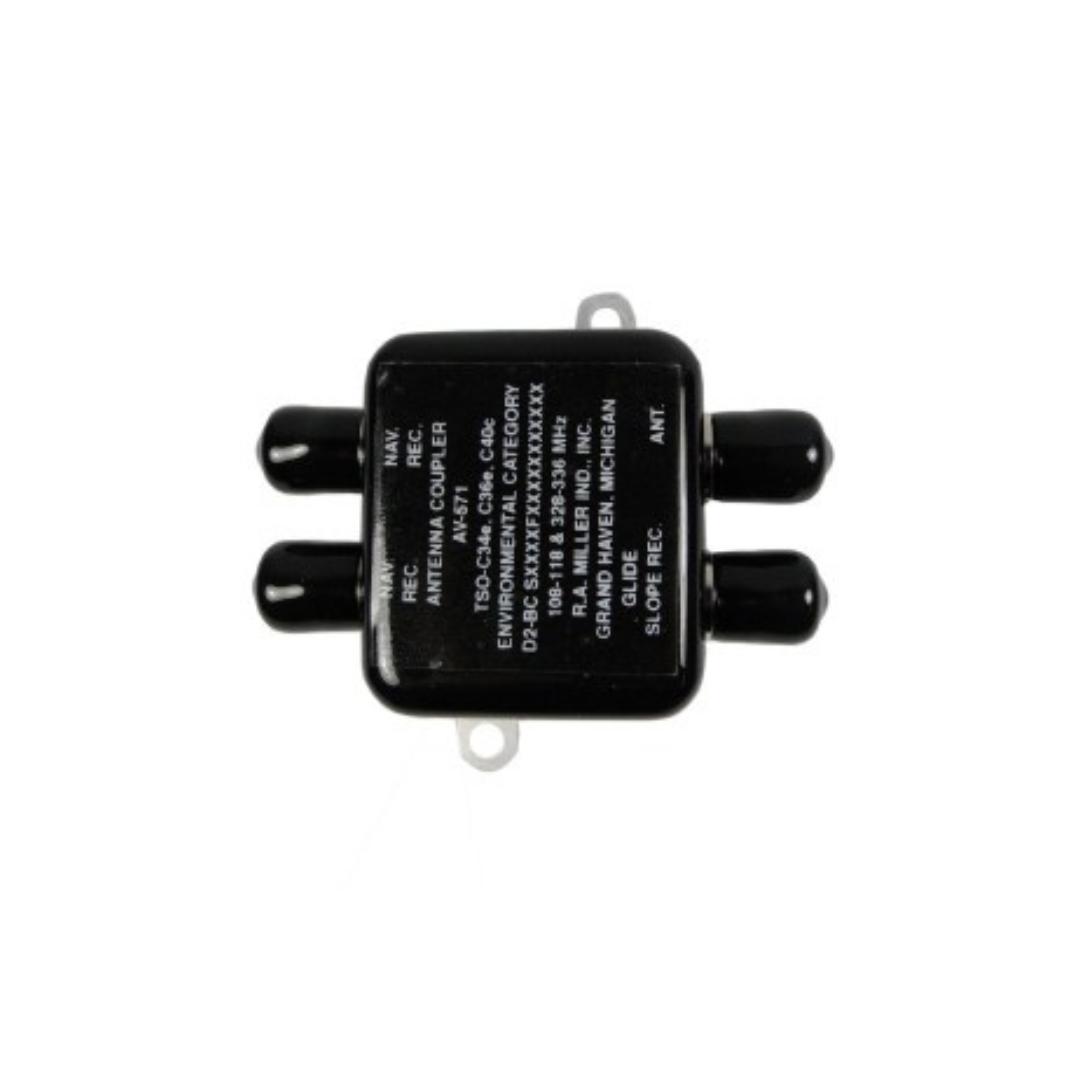

RAMI AV-571 TRIPLEXER COUPLER TSO
Part #: AV-571
AV571
Comparar
PNs Alternativos
- PN: - View
Overview
| Splits the signal from a single NAV antenna into two NAV receivers and one glide slope receiver. |
| Peso | 0.12 lbs |
|---|---|
| Dimensões | 4.38 × 4.75 × 2.25 in |
| Brands |
Specifications
Application: Navigation & Glide Slope
Frequency: 108-118 & 328-335 MHz
Impedance: 50 Ohms Nominal
Connector: (4) Type “BNC” Females
Filtering: 30 dB Min / 40 dB Avg
Insertion Loss: 3.75 dB Maximum
Isolation: 22 dB Min / 35 dB Avg
Dimensions: 2″ x 1-3/3″ x 1-1/8″
RF Power Capacity: Receive only
Documents
Click here to download Outline Drawing in PDF format. AV-571
