RC ALLEN 2″ PROP TACH RCA40A-07

Part #: RCA40A-07
RC Allen

RCA40A07

R$14,371.67

Comparar

Overview

RCA40A-06 (Refer to Image #1)

2″ Prop Tachometer, Green Arc from 0 RPM to Red Line at 1700 RPM.

RCA40A-10 (Refer to Image #2)

2″ Prop Tachometer, Green Arc from 0 RPM to Red Line at 2200 RPM.

RCA40AB-07 (Refer to Image #3)

2″ Prop Tachometer, Lighted, Green Arc from 1400 RPM to Red Line at 1700 RPM.

RCA41A-07 (Refer to image #4)

2″ Percent Tachometer, Type MU-1
(MIL 25623A)

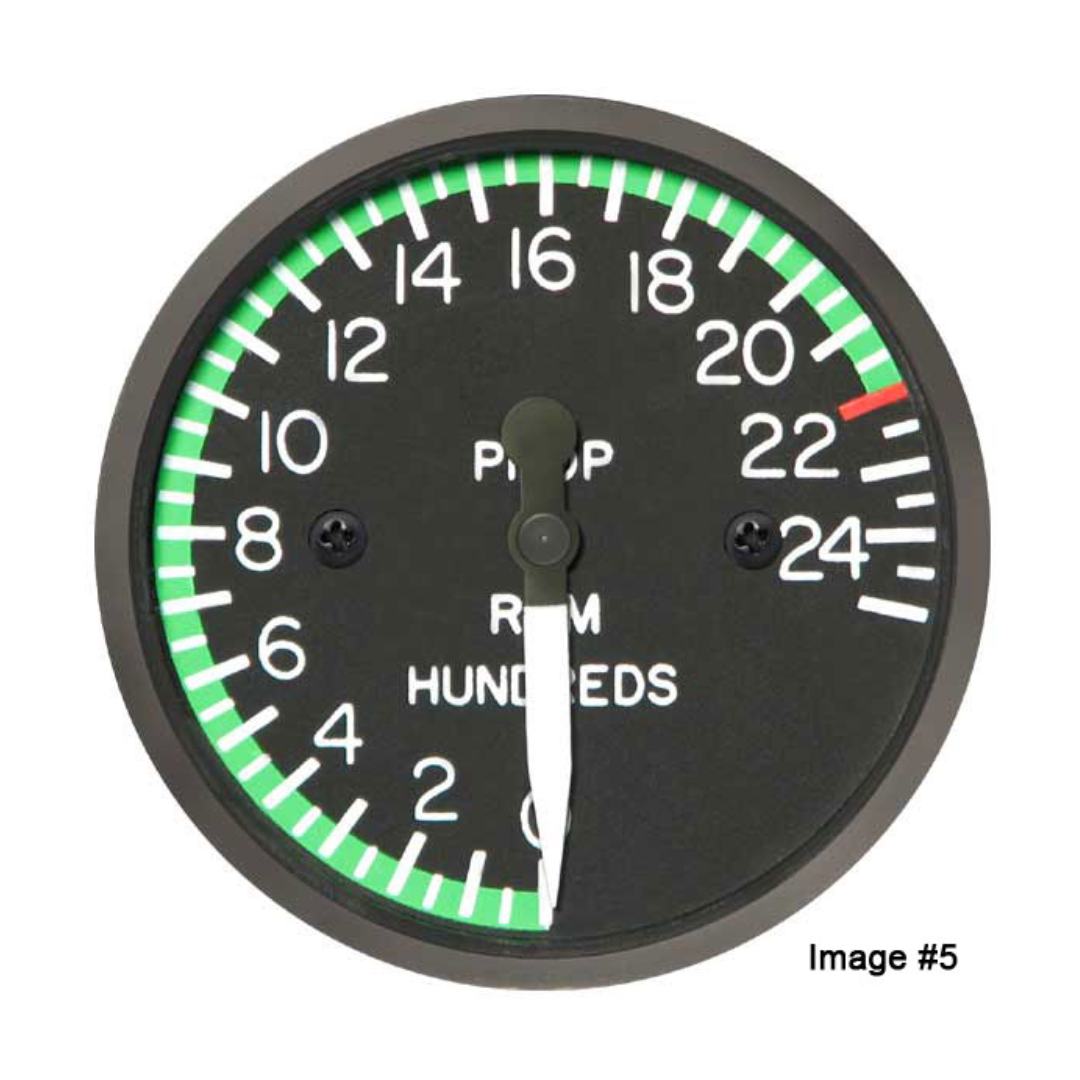

RCA41A-08 (Refer to Image #5)

Peso 3.18 lbs
Dimensões 5 × 2 × 2 in
Brands

Specifications

2″ Percent Tachometer, Green Arc from 560 RPM to Red Line at 1040 RPM.

Many years of experience were drawn upon in the design and development of these tachometers. Only the best time tested and field proven features were used. These instruments use a three phase alternating current synchronous motor powered by a remote tach generator. The simplicity of design results in a twofold gain: increased reliability and ease of overhaul.

A large one-piece frame is a very effective heat sink – a very important feature in drawing heat away from the bearings. All intermediate gears and pointer shafts are suspended on precision jewel bearings. These indicators are qualified for many military applications and have successfully passed temperature, vibration and environmental testing that exceeds most OEM requirements. Housed in a 2″ diameter hermetically sealed case, Standard ranges for Prop tachometer’s are 0 – 2000 or 0 – 4000. On the RCA41 percent tachometers the large pointer indicates 0 to 100% over 270° of pointer travel. Small pointer indicates in 1% increments on a 360° dial. Designed for use with a two pole tach generator conforming to specification MIL-G-9398.

Dimensions: 2″ diameter x 5″
Weight: .7 lbs. Power: Tach Generator, MIL-G-9398
Connector: MS3106A-14S-5S
Made in the USA
