RC ALLEN 22 SERIES VACUUM HORIZON GYRO TSO
Part #: RCA22-11F
RCA2211F
Comparar
Overview

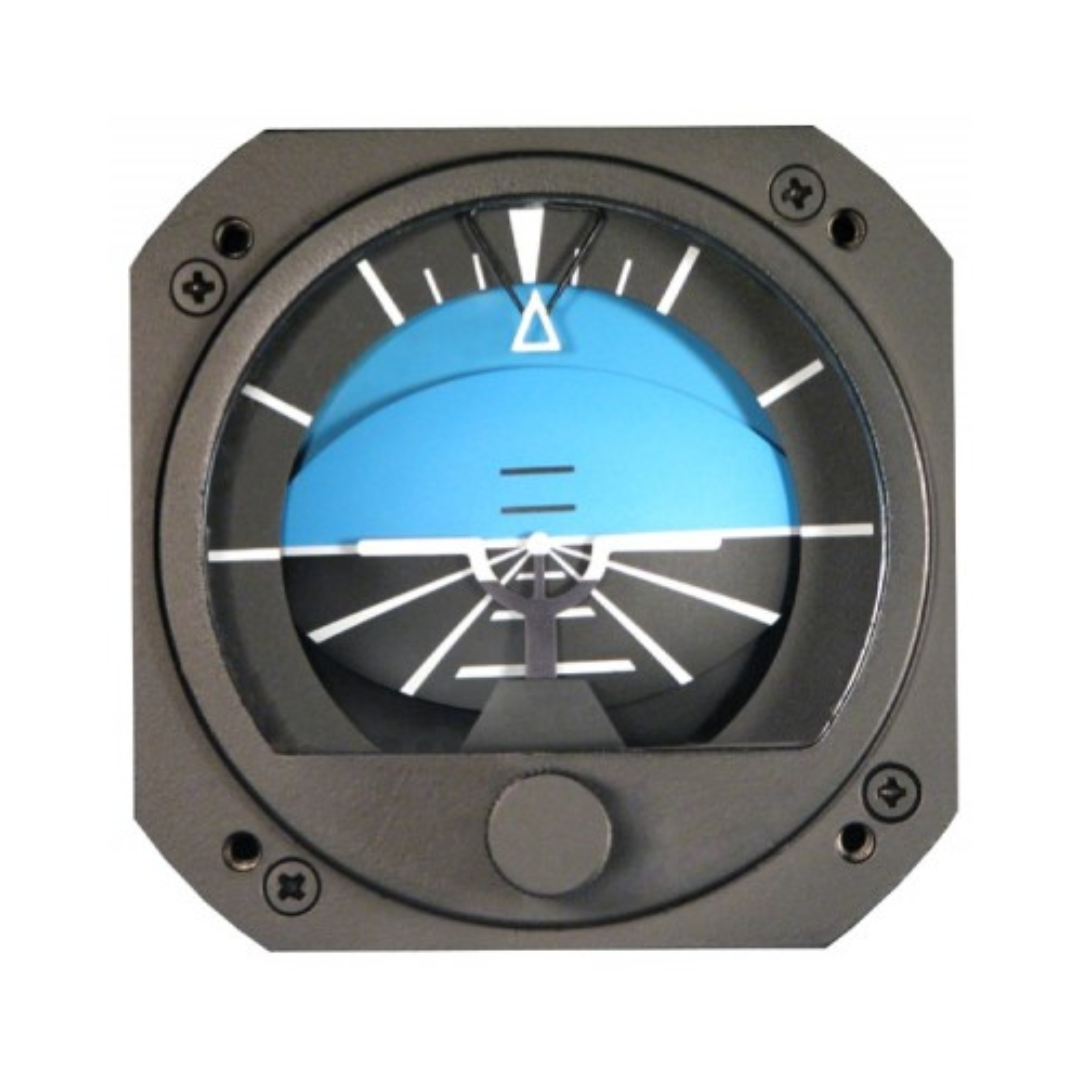

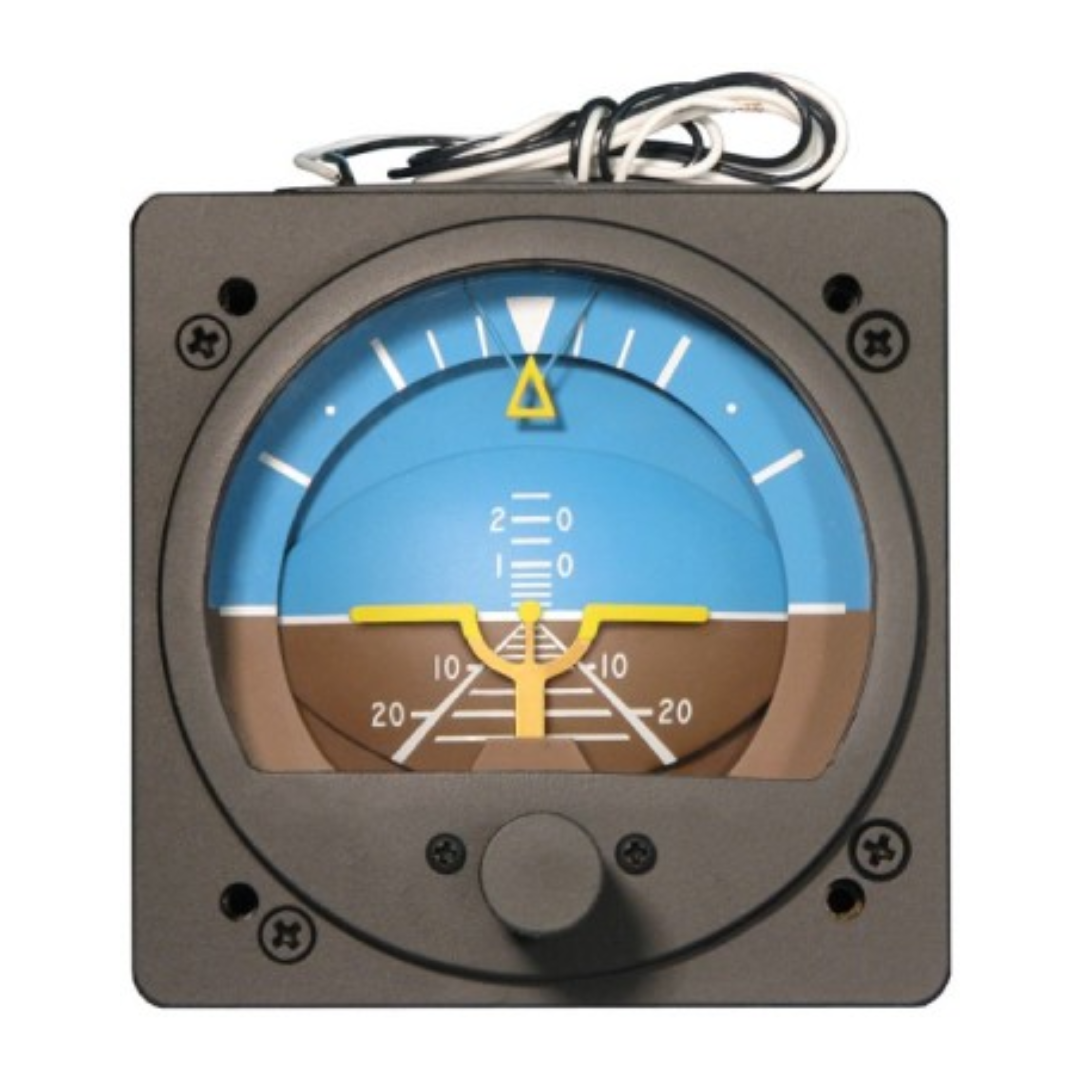

The RCA22 Series of vacuum artificial horizon are controlled by air driven precision gyros to present the pilot with pitch and roll information. The attractive color scheme of blue sky and brown ground presents a realistic spherical display of flight. Unless otherwise indicated all instruments have a dark blue/brown display, fixed pointer and are unlighted. This is the “standard” display.

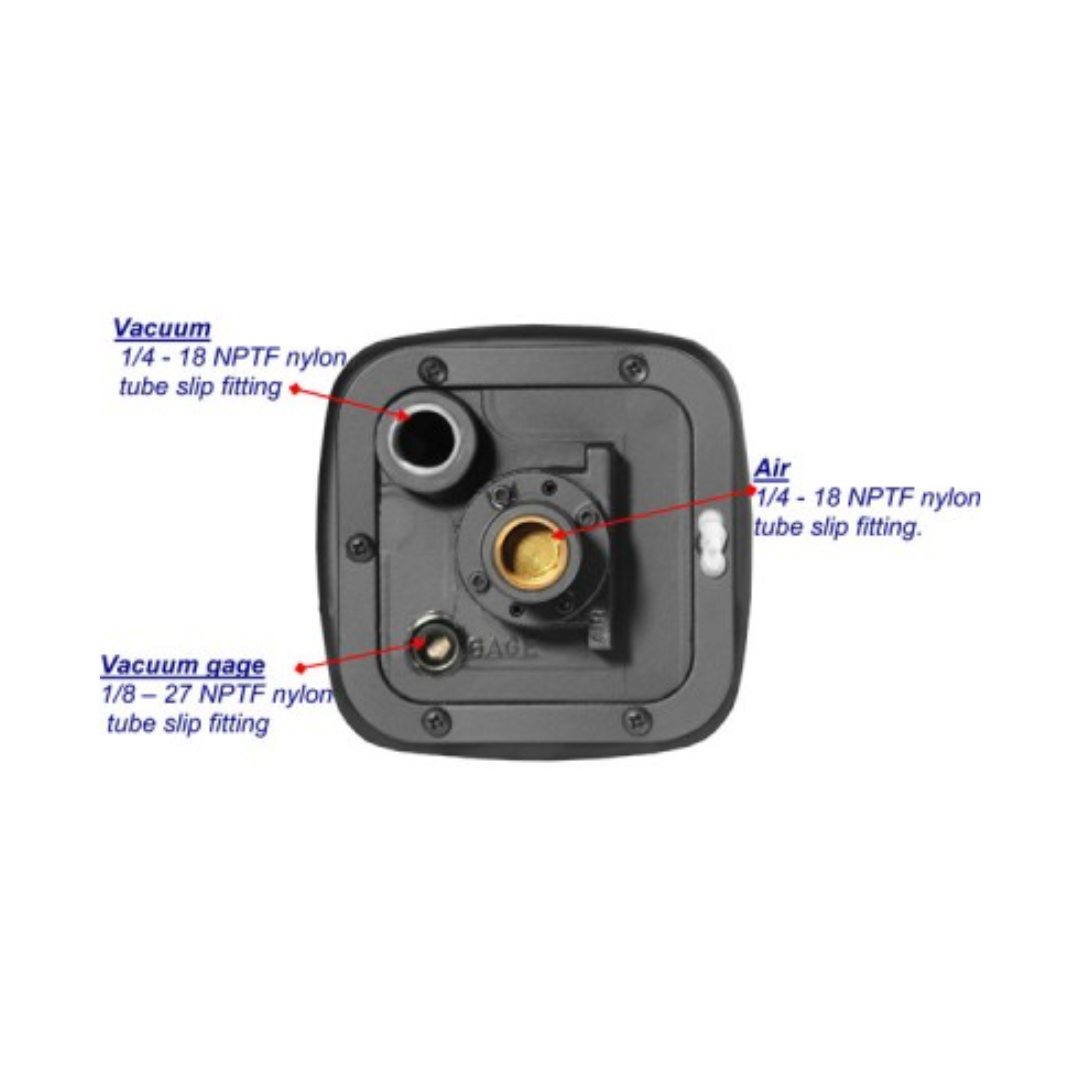

All RC Allen vacuum gyros run off of 4.5″ Hg, erect time is 3 min. Instruments equipped with a warning flag will let you know when vacuum has dropped below 3.8″ Hg. Flag retracts from view at 4.3″ Hg. Instrument fits in a standard 3-1/8″ panel cutout. 1/4″-18 NPTF nylon tube slip fitting is recommended for vacuum hose installation. 1/8″-27 NPTF nylon tube slip fitting is recommended for vacuum gage installation.
| Peso | 1.25 lbs |
|---|---|
| Dimensões | 6 × 3.4 × 3.4 in |
| Brands | |
| Select Model: | 22-11F 14V, 22-11F 28V, 22-11F |
| Select Tilt: | 0 Degree Tilt, Custom Degree Tilt, Factory Overhauled |
Specifications
| Height: 3-3/8″ Width: 3-3/8″ Length: 6″ Weight: 2.75 lbs.Meets or exceeds all requirements of FAA TSO C4c and Aeronautical Standard AS396B. Made in the USA |
Model Specifications
- 22-7: Standard display
- 22-7F: Standard Display with a warning flag.
- 22-11: Standard display, lighted 14V or 28V
- 22-11F: Standard display, lighted, with a warning flag, 14V or 28V
- 22-15: Display is blue over black(AKA Piper Display).
