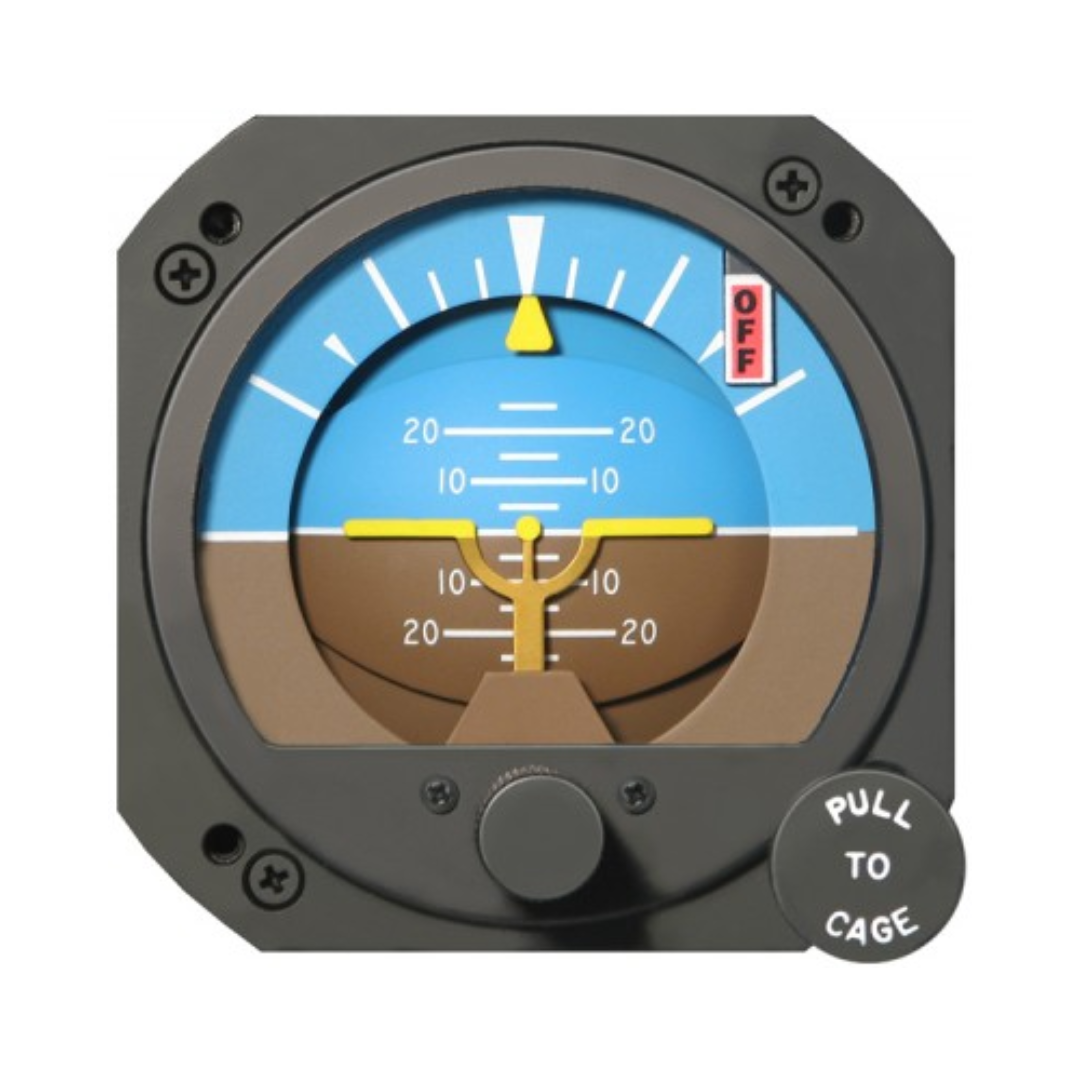

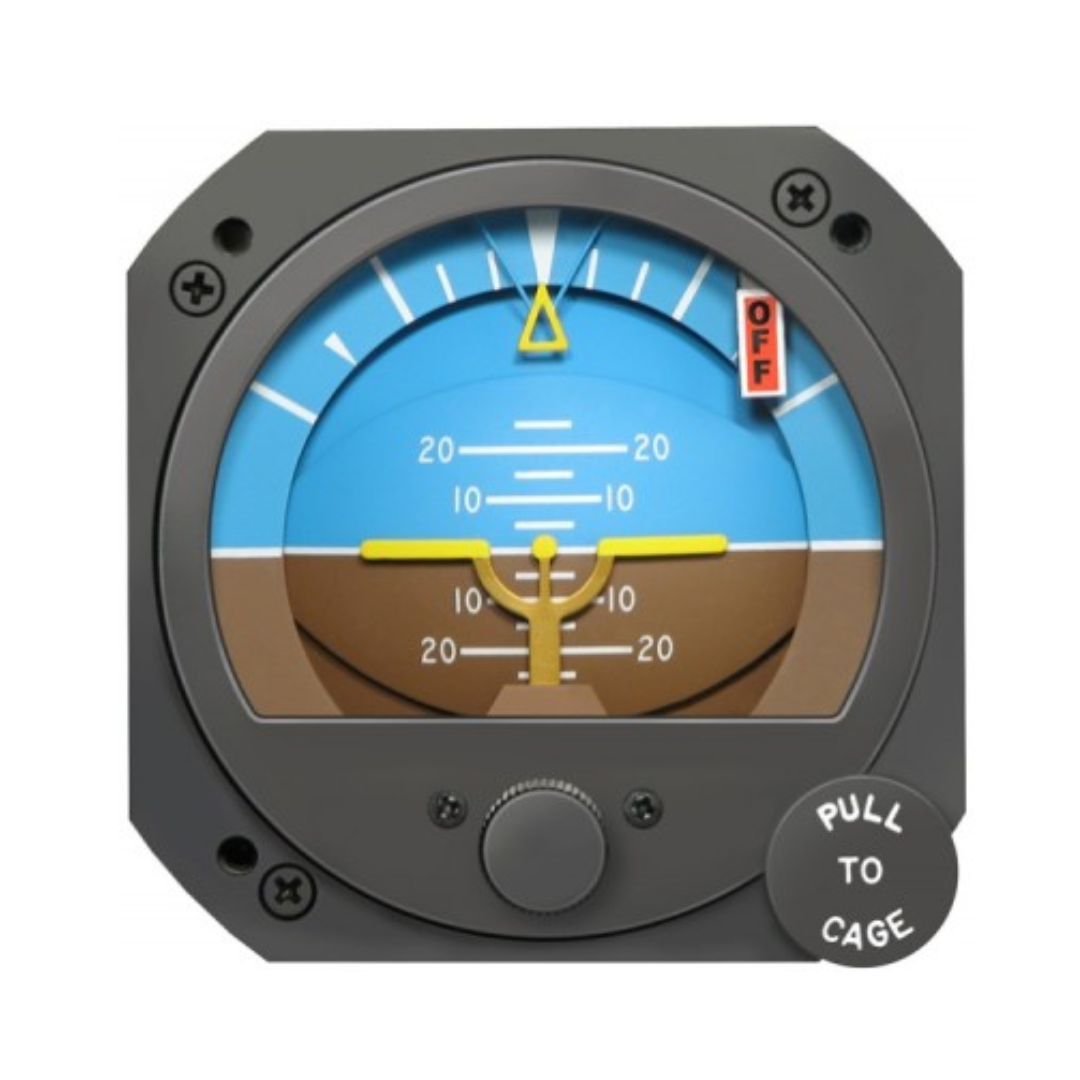

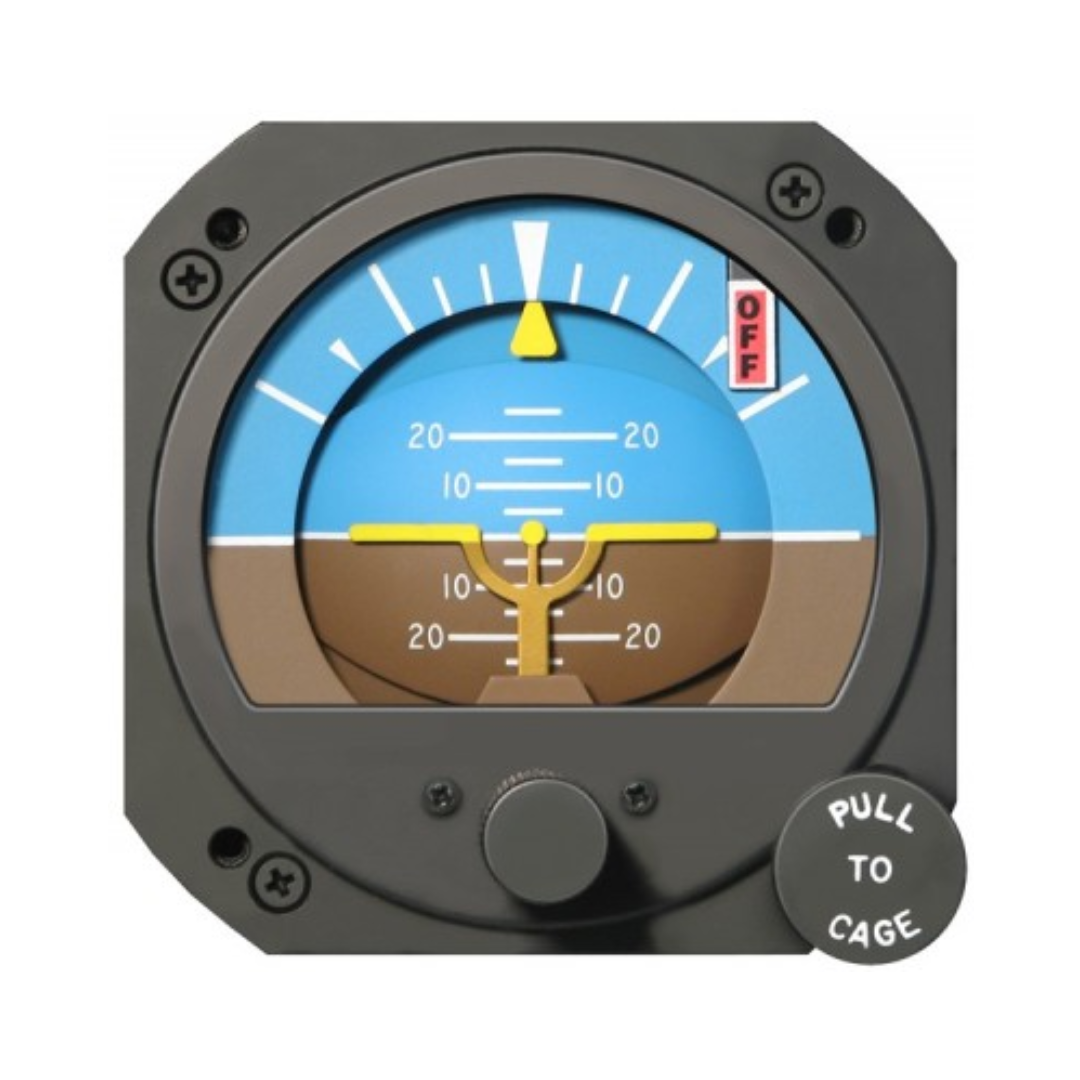

RC ALLEN 26EK SERIES GYRO ELECTRIC MULTI-VOLT ATTITUDE INDICATOR
Part #: 102-0089-05, RCA26EK-12
102008905, RCA26EK12
Comparar
Overview
| The RCA26 Series is the top of the line and has been designed for precision and reliability. The RCS26EK Series is a 10-30 VDC multi-volt instrument. You have a choice of a fixed or moveable pointer and lighted or non-lighted. Performance characteristics include roll indication of 360°. Pitch ± 30°. Pitch trim range ±7°. Slip Indicator can be added upon request. Mating connector MS3116E8-4S and panel mounting screws are now included with each unit.OPERATING TEMPERATURE: -30 TO +50 Degree CelsiusThese instruments meet or exceed requirements of TSO C4c and Aeronautical Standard AS396B. Optional Slip Indicator to satisfy FAA AC91-75. Made in the USA |
| Peso | 1.04 lbs |
|---|---|
| Dimensões | 7 × 3.4 × 3.4 in |
| Brands | |
| Select Model: | 26EK-12 |
| Select Tilt: | 0 Degree Tilt, Custom Degree Tilt |
Model Specifications
EK-12:Fixed Pointer, lighted, with a yellow airplane and pointer. Pin out of connector. A: Ground, B:Ground Lights, C: +12=30 VDC Motor, D:0-28 VDC Lights, available in 0° or 8° Tilt
