SHOCK CORD RING – 1280HD

Part #: 1280HD

1280HD

R$336.47

Comparar

Overview

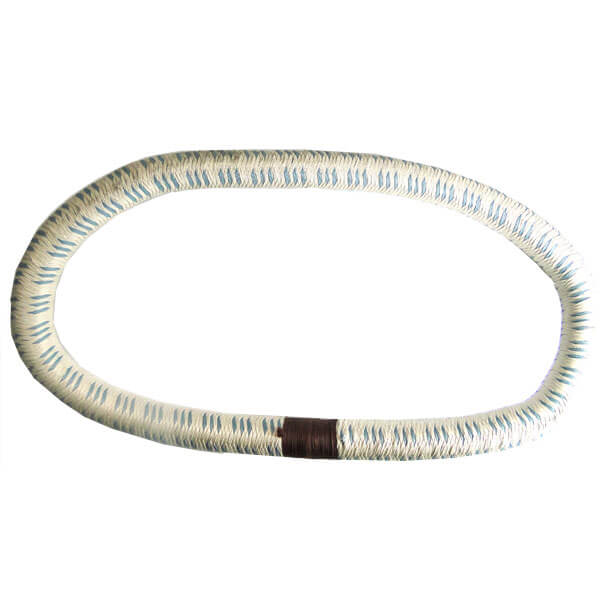

An endless elastic ring composed of multiple strands of natural rubber, wound into a circular skein. Braided cover is high grade yarn. Manufactured to meet specification MIL-C-5651B, Type II. Shock cord is used in landing gear to reduce shock transmitted to fuselage while landing and taxiing and on other shock mounting applications. Color coded to insure fresh stock.

CW (Cold Weather)shock rings available on Special Order basis. Prices are approx. twice that of standard shock rings. Add “-CW” to standard part number when ordering.

The MIL Fresh Shock Ring number is 1280HD. The ring size is 3/4″ x 8″. Test is 950 LBS. 4 units required.

Note: Size listed is cord diameter x ID

Part: 1280HD Categorias: , , Tags: ,
Peso 0.18 lbs

Application Chart

Plane Type Part # Size Test Lbs No. Req’d
Acrosport Model 1 1280HD 3/4″ x 8″ 950 4
Piper J3
(ser. no. 8277 & up)
1280HD 3/4″ x 8″ 950 4
Piper PA-11;
PA-17
1280HD 3/4″ x 8″ 950 4
Piper 3013 1280HD 3/4″ x 8″ 950 4
Piper Planes ser. no.
(18-3014 & up)
1280HD 3/4″ x 8″ 950 4
Piper PA-18 “150” 1280HD 3/4″ x 8″ 950 4
Piper Planes up to
including 18-3013
1280HD 3/4″ x 8″ 950 4
Piper 18-3013 Inclusive 1280HD 3/4″ x 8″ 950 4
Piper Planes ser. no.
(18-3014 & up)
1280HD 3/4″ x 8″ 950 4
Piper PA-12 1280HD 3/4″ x 8″ 950 4 or 6
Piper PA-14 1280HD 3/4″ x 8″ 950 4
Pitts S-2 1280HD 3/4″ x 8″ 950 4
Rans Model S10 1280HD 3/4″ x 8″ 950 1
