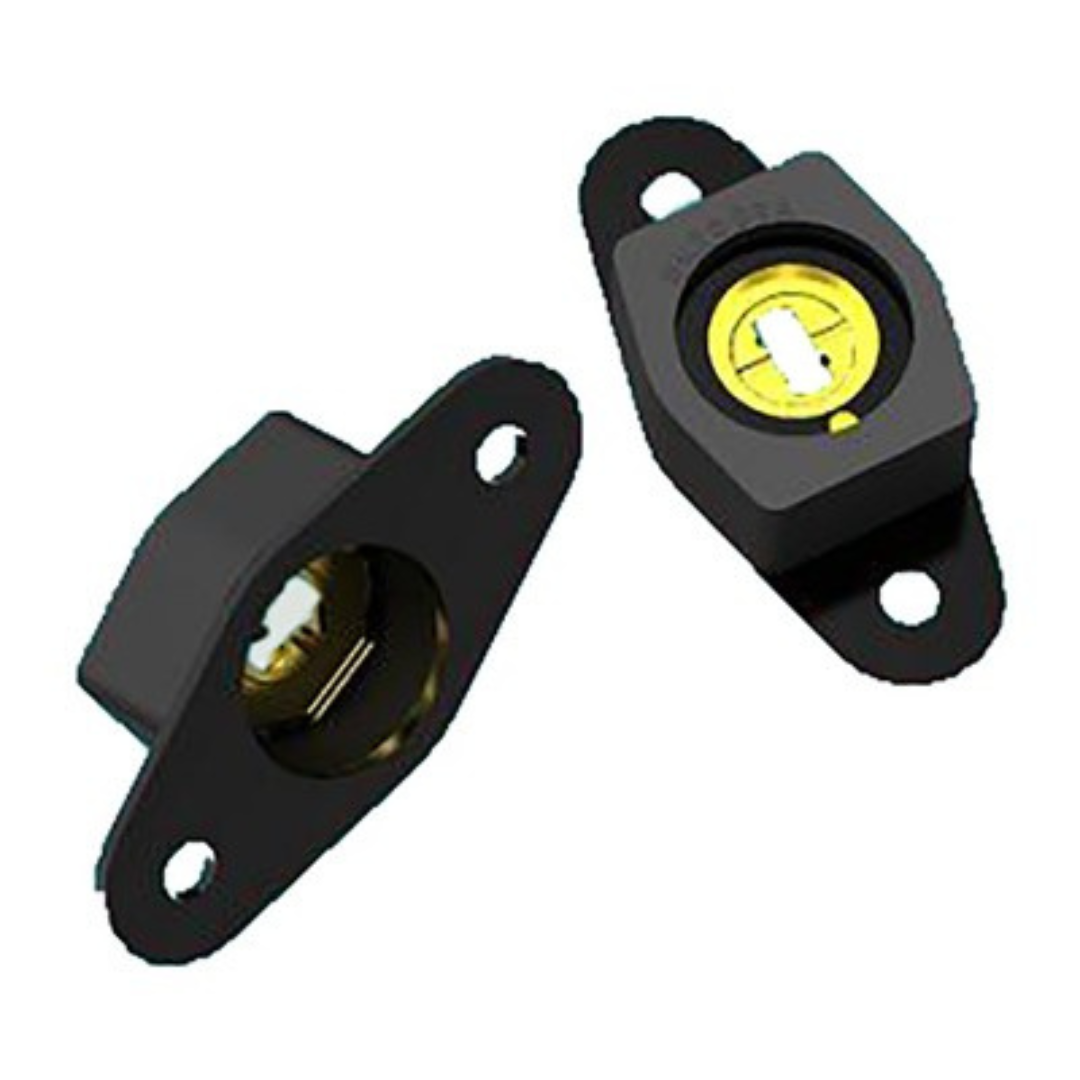

SK2003-14A NON-ADJ PLATEMOUNT

Part #: SK2003-14A
Skybolt

SK200314A

R$231.76

Comparar

Overview

The SK2003A Series Mounts were specifically designed around the latest generation Cessna/Lord J7444-42 Series Mount. The SK2003-14A, -24A, and -42A all have the same flex feature as the J7444-42.

Seeing is believing; The Skybolt product is a vast improvement in overall quality with the improved features integrated into each dash number. This brings the -14 and -24 up to the performance level of the -42. The Skybolt SK2003-14A, -24A, and -42A look and install exactly the same as the Cessna/Lord part it replaces using the same fastener length. The SK2003-14A, -24A, and -42A are fixed depth, Non-Adjustable Platemounts.

SK2003-14A

Cessna Part# J7444-14 Used On – 67-On C150 (10ea),
67-86 C172 (11ea), C172XP (13ea) 68-78 C177 (14ea)
Suggested Unit Weight
Skybolt Part# Description Suggested Fastener SK2003-14A J7444-14
SK2003-14A Southco 82-19-xxx-20 .0230Lb 10.4g .0310Lb 14.0g
Use with standard fasteners: (Length Varies)
82-19-120-20 Stainless Phillips Stud
82-19-140-20 Stainless Phillips Stud
82-32-201-20 Stainless Stud Retainer

SK2003-24A

Cessna Part# J7444-24 Used On – 73-86 C182 (14ea)
Suggested Unit Weight
Skybolt Part# Description Fastener SK2003-24A J7444-24
SK2003-24A Camloc or CLoc® SK27S3 SK27S3-2S,3S,4S .0230Lb 10.4g .0310Lb 14.0g
Use with standard fasteners: (Length Varies)
SK27S3-2,3,4 Steel Phillips Stud
SK27S3-2S.3S,4S Stainless Phillips Stud
2600-SW Stainless Retainer
SK2003-14A
Part: SK2003-14A Categorias: , , , Tag:
Peso 0.01 lbs
