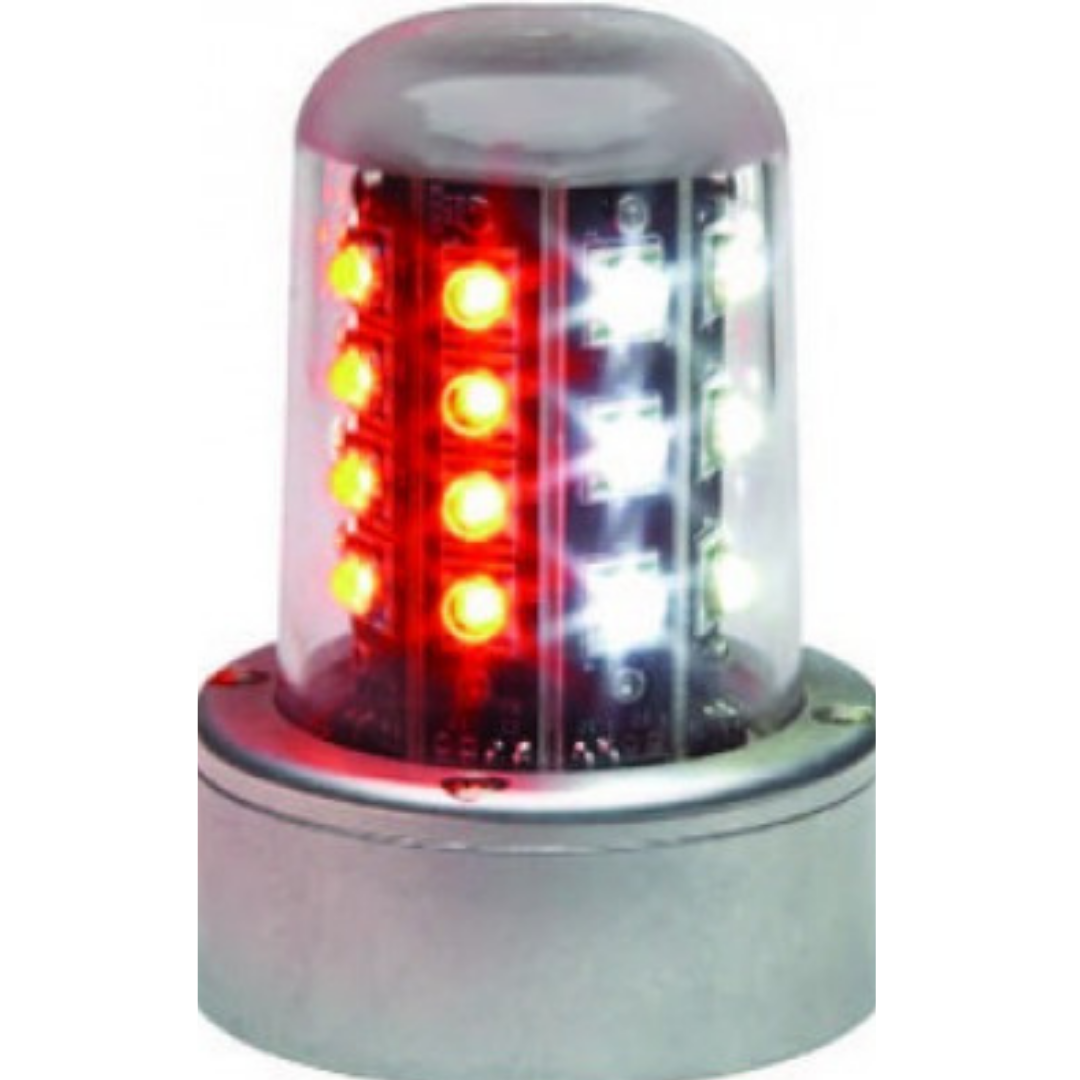

WHELEN 9052017 RED/WHT 28VDC
Part #: 01-0790520-17
| 01079052017 |
Comparar
Overview
| 90520 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I – 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon. Mounting plate included with select assemblies. Refer to models and descriptions below.
WARNING: This product can expose you to chemicals including Methylene Chloride, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Peso | 0.29 lbs |
|---|---|
| Dimensões | 9 × 7 × 5 in |
| Brands |
Specifications
ELECTRICAL:
Models: -01, -04, -05, -14, -15-51, -55: Ship with 12” Flying Leads Models: -07, -17, -08, -18: MS3102R10SL-3P Connector
MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5 Hole mounting pattern on 4.656 diameter bolt circle (Whelen 70285 series / 7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 ¾” opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen model HRCFA, or 7090004, -05 series LED beacons.
- Current: 0.67 amps Average,
- 3.0 amps Peak
- Weight: 0.65 lbs. (295gm)
- (-01 & -51)
- Lens: Clear polycarbonate
- Dimensions: 2.6” (66mm) Diameter, Exposed Height, 3.74” (95mm)
- (-01 & 51)
Documents
Dimensional Drawing 9052051 (PDF)
