Aircraft Parts, Electrical, LED Lighting, WAT (formerly Whelen)

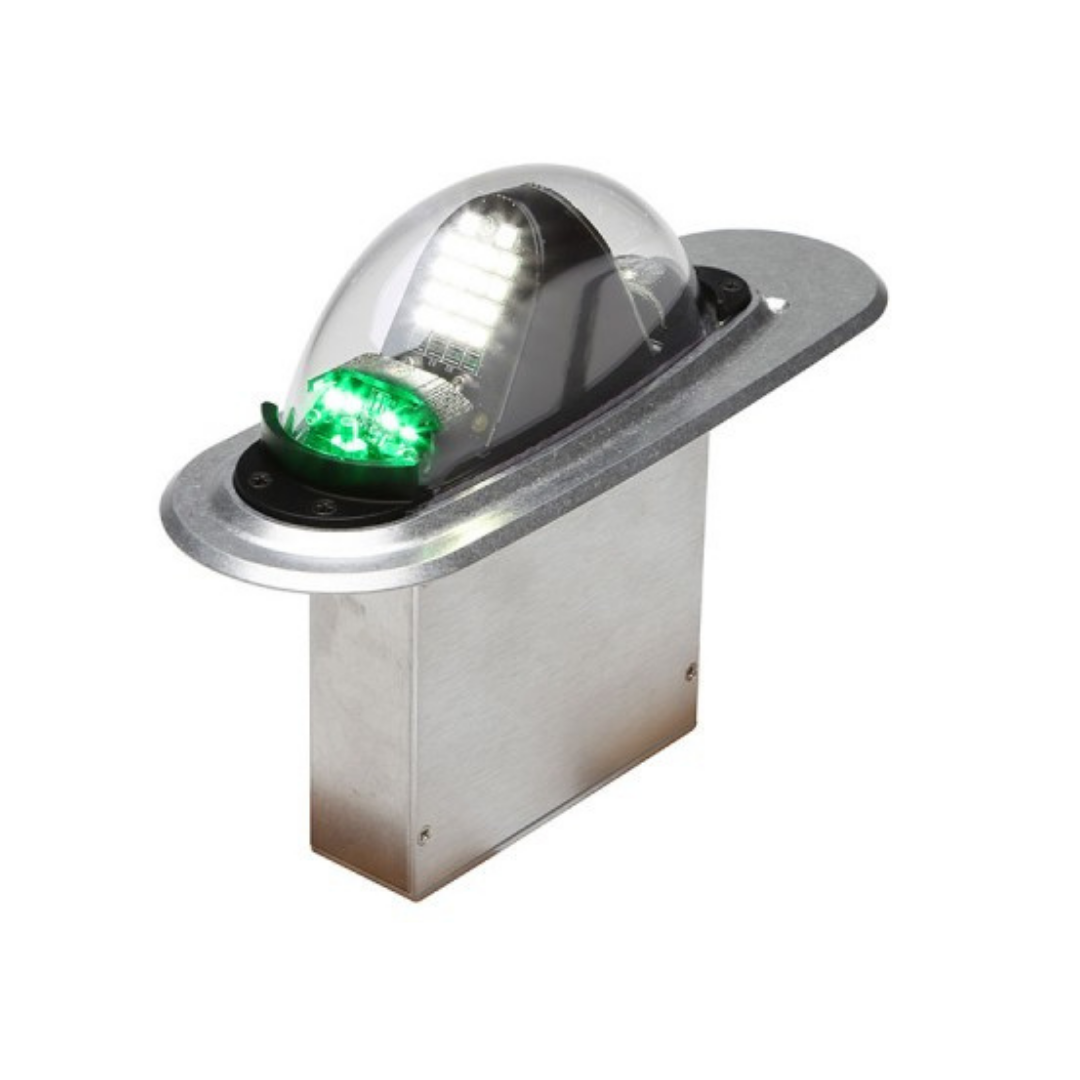

WHELEN 90613 SERIES LED RH GREEN WINGTIP ANTI-COLLISION
Part #: 01-0790613-91
01079061391
Comparar
Overview
| Whelen 90613 Series Wingtip & Anti-Collision – RH Green.
90613 is a self-contained LED wingtip light head assembly utilized for Cessna Caravans. The unit complies with TSO-C96a Class II (400 ECP) anti-collision light requirements and TSO-C30c forward / rear position light requirements. Model 9061391/ 92 is a direct mechanical replacement, same fit / form / function for the legacy Caravan wingtip lights. Currently, these assemblies are TSO approved with STC Approved. |
 |
WARNING: This product can expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Peso | 0.4 lbs |
|---|---|
| Dimensões | 7 × 7 × 4.5 in |
| Brands |
Specifications
- Model #: 9061391
- Dimensions: 7.40 Long x 5.33″ Wide
- Exposed Height: 2.63″ (66mm)
- LED Position Light: 0.23 Amps
- LED Anti-Collision Light (Avg.): 0.73 Amos
- LED Anti-Collision Light (Pulse @ .25 Sec.): 3.9 Amps
- Flashrate: 45 ± 5 / min.
- Nominal Operational Voltage: 28 VDC
- TSO: Approved
- STC: Approved
