Aircraft Parts, Electrical, LED Lighting, WAT (formerly Whelen)
01-0790724-11 WHELEN 9072411 LED RED 28V ANTI LOWER
Part #: 01-0790724-11
01079072411
Comparar
Overview

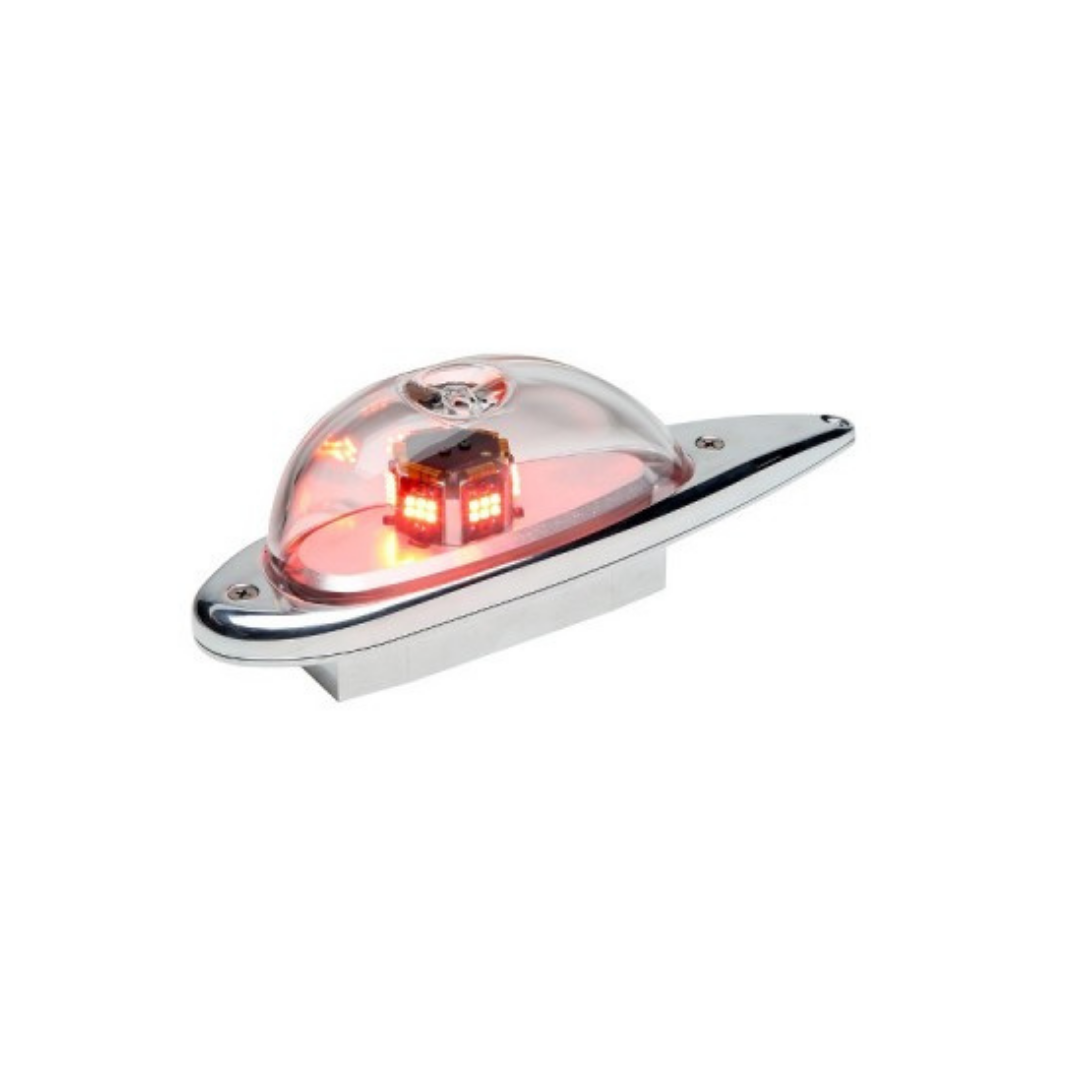

| Model 90724 Series is a self-contained LED anti-collision beacon. It’s solid-state circuitry and LED light source obsolete the “old style” mechanical oscillating beacons as well as the Whelen 90044 Series quartz halogen flashing beacons. Benefits include no moving parts, no EMI/RFI, no inrush current spikes and crisp on off cycles. There are several models available to provide compatibility with existing mounting patterns and profiles, thus eliminating the need to alter the aircraft. |
| Peso | 0.82 lbs |
|---|---|
| Dimensões | 9.88 × 2.38 × 3.5 in |
| Brands |
Specifications
- Power Consumption: 0.45 Amps @ 28 VDC
- LED Color: Aviation RED
- Lens Color: Clear glass
- Replaces: Whelen: 90044 Series and Grimes: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
