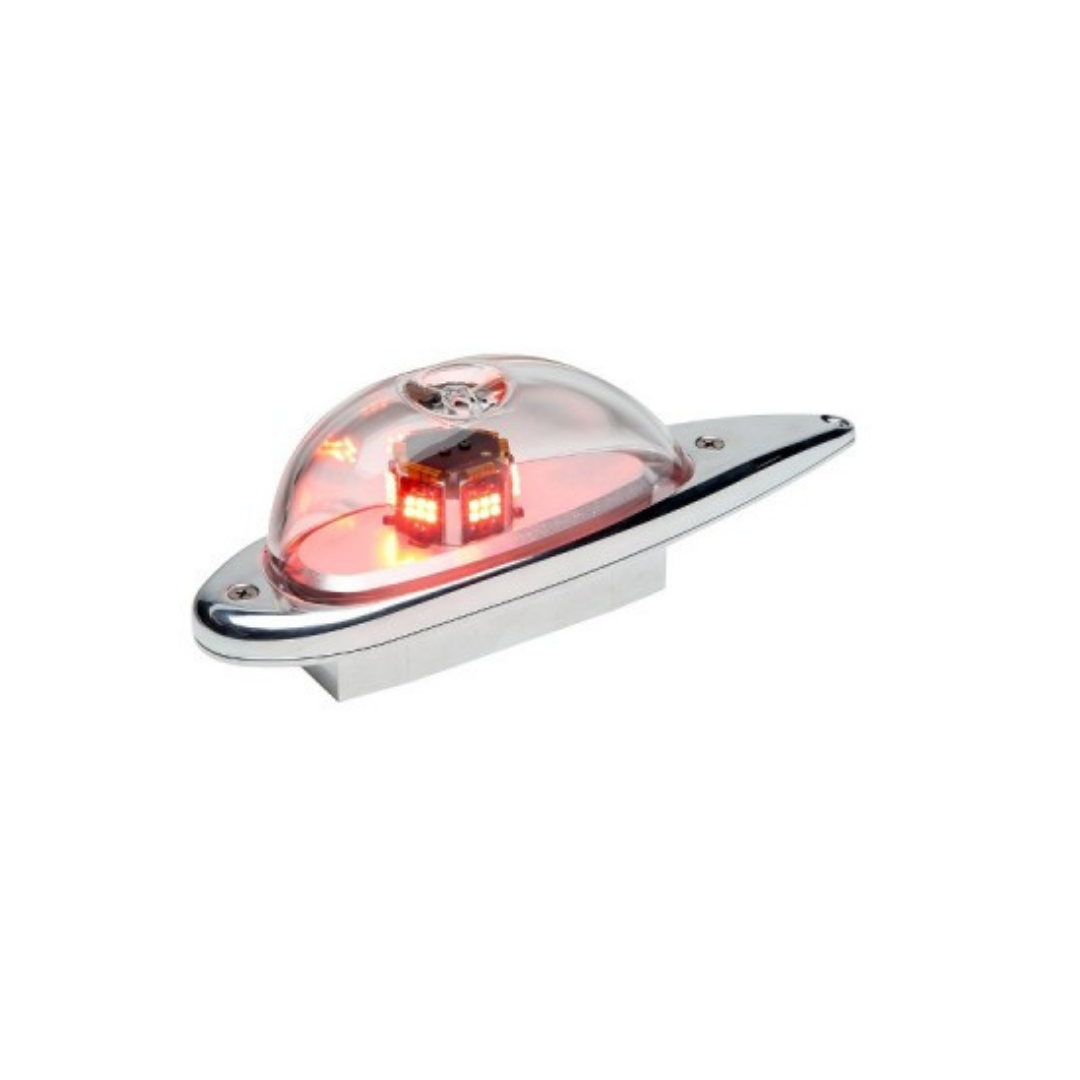

WHELEN 9072418 LED RED 28V ANTI UPPER
Part #: 01-0790724-18
01079072418
Comparar
Overview
| Model 90724 Series is a self-contained LED anti-collision beacon. It’s solid-state circuitry and LED light source obsolete the “old style” mechanical oscillating beacons as well as the Whelen 90044 Series quartz halogen flashing beacons. Benefits include no moving parts, no EMI/RFI, no inrush current spikes and crisp on off cycles. There are several models available to provide compatibility with existing mounting patterns and profiles, thus eliminating the need to alter the aircraft. |
 |
WARNING: This product can expose you to chemicals including Lead, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Peso | 0.82 lbs |
|---|---|
| Dimensões | 10.812 × 3.87 × 3.515 in |
| Brands |
Specifications
- Power Consumption: 0.45 Amps @ 28 VDC
- LED Color: Aviation RED
- Weight: 1.8 lbs (816gm) (unless otherwise noted)
- Exposed Height: 2.70″ (69mm)
- Lens Color: Clear glass
- Replaces: Whelen: 90044 Series and Grimes: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
