Aircraft Parts, Electrical, Interior Lighting, Post Lights, WAT (formerly Whelen)
WHELEN A350CN-RD-BK-SH-28
Part #: 01-0770119-16
01077011916
Comparar
Overview

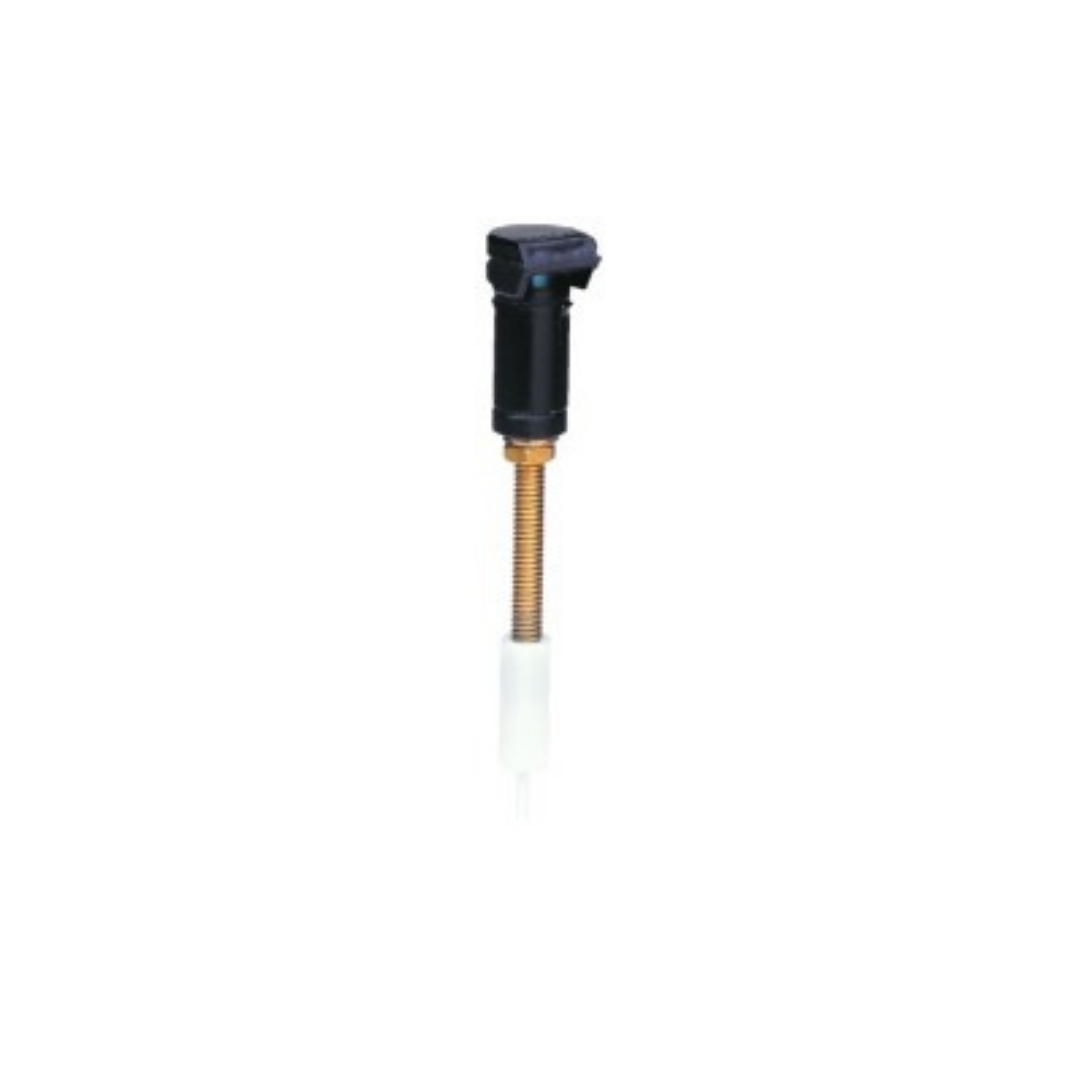

| The A350CN series instrument post light assembly is designed to illuminate the instrument panel and function as instrument mounting bolts. Identical to the A350 Series but with the connector nut. |
 |
WARNING: This product can expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Drawing Number A350CN: 70119
- Exposed Height: .875” (22mm) without spacer, 1.00” (25mm) with spacer
- Power Consumption: 0.2 amps @6 VDC, 0.08 amps @14 VDC, & 0.04 amps @ 28 VDC
| Peso | 0.02 lbs |
|---|---|
| Dimensões | 5.512 × 3.15 × .788 in |
