Aircraft Parts, Electrical, LED Lighting, Position Lighting, WAT (formerly Whelen)

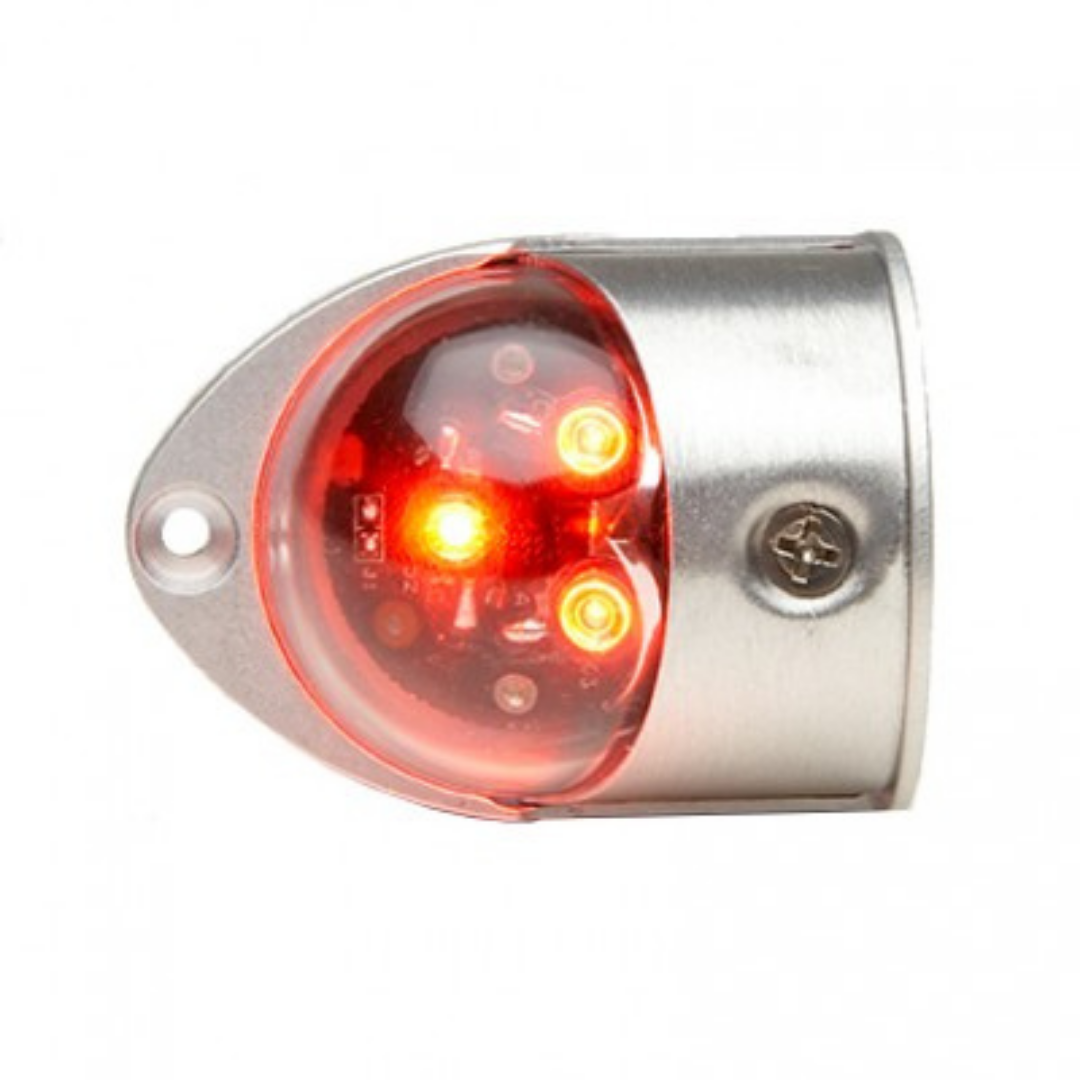

WHELEN LED 14V FORWARD POSITION LIGHT RED
Part #: 01-0771379-12
| 01077137912 |
R$2,825.83
CompararOverview
| 71379 is an LED W1250 wingtip forward position light designed to be located under a fairing, but is suitable for external mounting as well. Replaces GRIMES A1815A and Whelen W1250. Product ships with 6″ flying leads and is avilable in 28VDC or 14VDC.
Approvals 7137901 01-0771379-01 LED Fwd POS (Green) FAA TSO-C96a,TSO-C30c Types II 7137902 01-0771379-02 LED Fwd POS (Red) FAA TSO-C96a, TSO-C30c Types I WARNING: This product can expose you to chemicals including Methylene Chloride, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Peso | 0.37 kg |
|---|---|
| Brands |
Specifications
- Drawing Number: 71379
- Voltage: 28VDC
- Power Consumption: 0.3Amps
- Weight: 0.5lbs (226.8gm)
- Length: 2.31 (58.67mm)
- Exposed Height: 1.25 (31.75mm)
- Width: 1.75 (44.45mm)
Não há avaliações ainda.
