WHELEN LED FORWARD POSTION LIGHT RED

Part #: 01-0771379-02
Wat

01077137902

Comparar

Overview

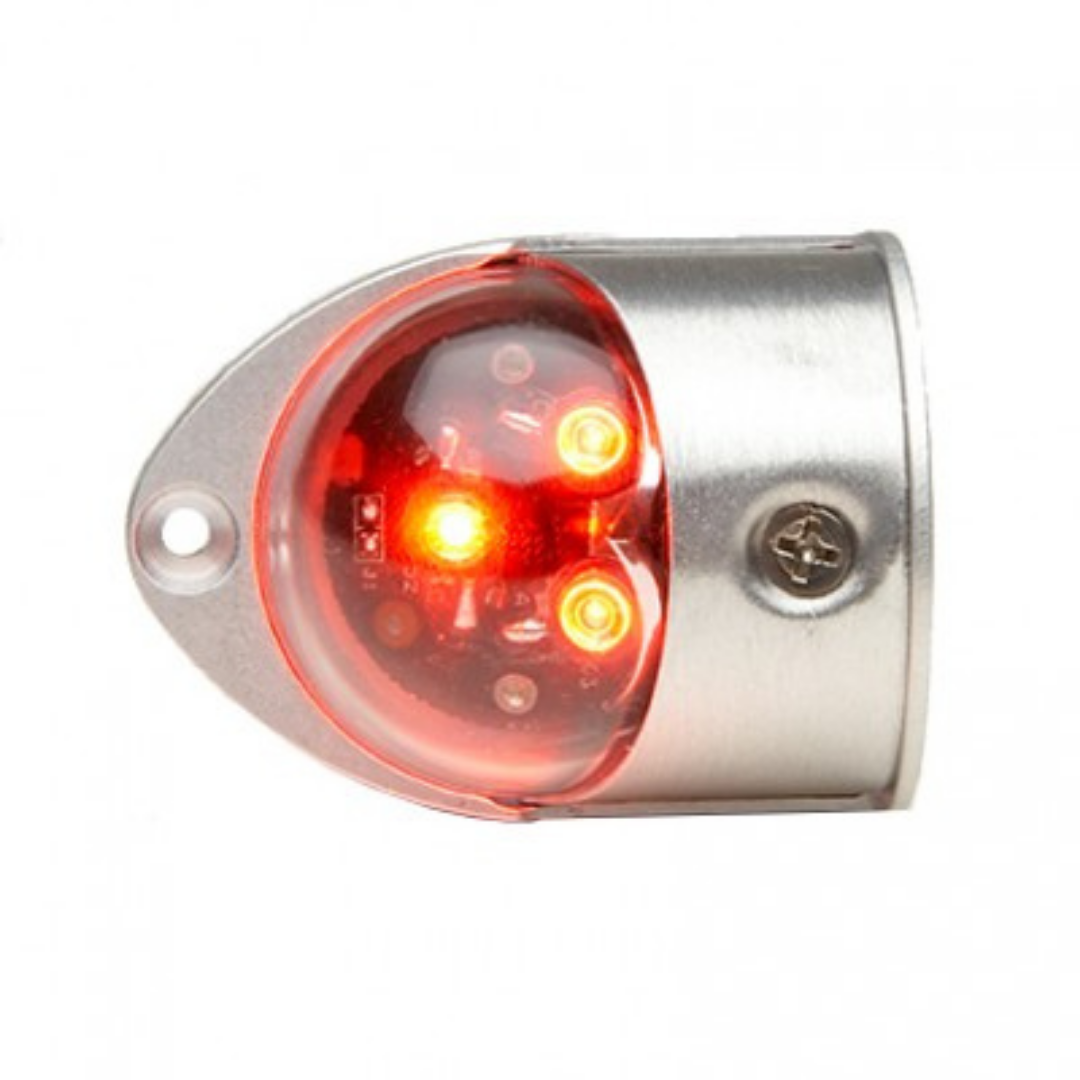

71379 is an LED W1250 wingtip forward position light designed to be located under a fairing, but is suitable for external mounting as well. Replaces GRIMES A1815A and Whelen W1250. Product ships with 6″ flying leads and is avilable in 28VDC or 14VDC.

Approvals 7137901 01-0771379-01 LED Fwd POS (Green) FAA TSO-C96a,TSO-C30c Types II 7137902 01-0771379-02 LED Fwd POS (Red) FAA TSO-C96a, TSO-C30c Types I

WARNING: This product can expose you to chemicals including Methylene Chloride, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Peso 0.16 lbs
Dimensões 4.375 × 3.25 × 3.25 in
Brands

Specifications

  • Drawing Number: 71379
  • Voltage: 28VDC
  • Power Consumption: 0.3Amps
  • Weight: 0.5lbs (226.8gm)
  • Length: 2.31 (58.67mm)
  • Exposed Height: 1.25 (31.75mm)
  • Width: 1.75 (44.45mm)
