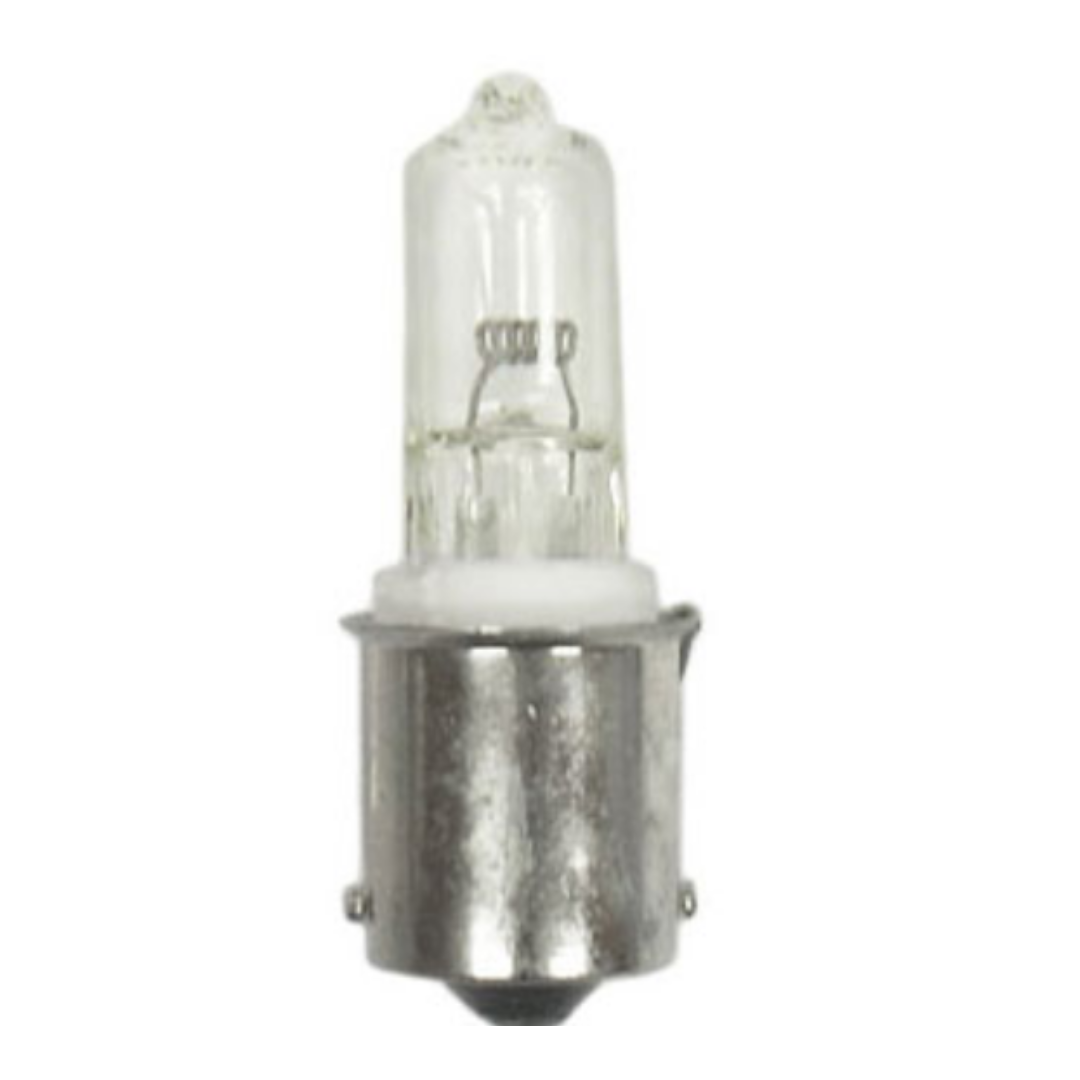

WL-1982SP, Wamco Halogen Lamp

FEATURES
• Lamp clean with no foreign materials or glass chips inside
• Envelope clear and free of scratches, discoloration, and any cement residue

TECHNICAL INFORMATION
• ANSI 1982 SP
• ARP881 1982 SP
• FAA CFR 21.303(H)
• RoHS Compliant

SPECIFICATIONS
• Voltage Rating: 28 V
• Amperage Rating: 2.68 A
• Wattage: 75 W
• Lamp Type: T-3 Halogen
• Lamp Base: BA15s Single Contact Bayonet
• Lumens: 110 Lumens
• Average Life: 2000 hr
• Lamp Finish: Nickel
• Filament: CC-6
• Maximum Overall Length: 47 mm
• Light Center Length: 25.4 mm
• Color: Clear
• Diameter: 10.5 mm
• Suitable For Use With: Commercial, Private and Military Aircraft
• Domestic/Import: Import
